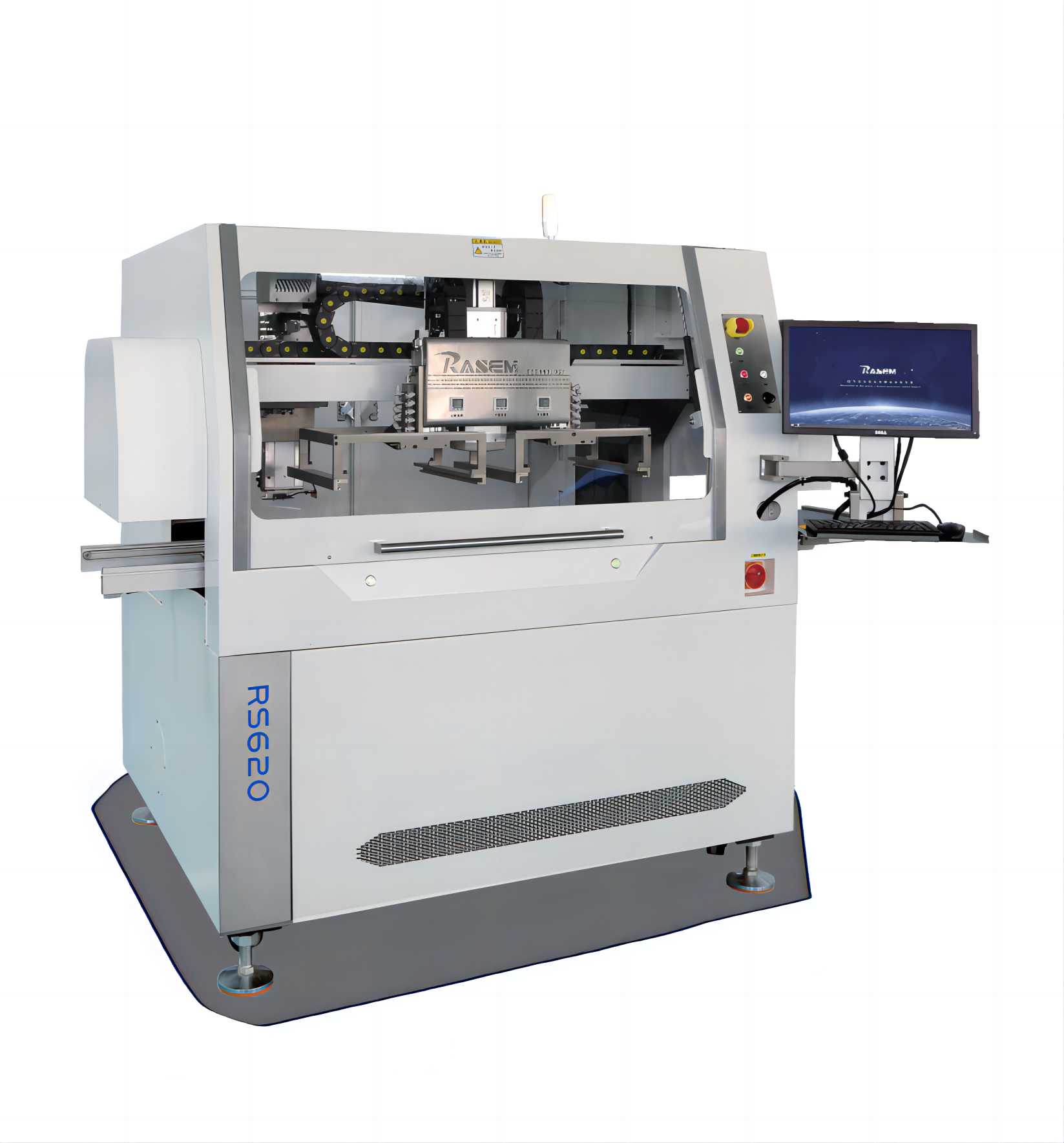

RS-620 Sucker type visual online plate splitter
Technical features:
1.discharge module diversification
2. MAX.80000/RPM high-speed cutting
3.automatic sorting system
4.Double sucker transplanting module
5. Artificial intelligence system
6. Contour detection system
7. Safety protection system
8. Real-time image monitoring
Device Parameters
Equipment size ：L1830*W1330*H1650
Effective splitter size ：X350*Y310
Working table ：Double table
Feeding mode ：Track entry plate
Discharge method ：Track conveyor or belt discharge or sliding table discharge plate
Transplanting method ：Vacuum nozzle adsorption transplanting
Operating height ：900±20mm
Flow direction ：Left → right or right → left
Machine repetition accuracy ：±0.01 mm
Cutting accuracy ：±0.05 mm
Maximum moving speed :XY:1000mm/s Z:300mm/s
Maximum travel ：X axis: 870mm,Y1/Y2 axis: 725mm,Z axis: 100mm
Manipulator travel ：X axis: 990mm,Z axis: 100mm
Spindle speed ：MAX.80000RPM
Milling cutter replacement method：Automatic tool change
Cutting speed ：1-100mm/s
Operating interface ：Window operation interface Windows10
Program teaching mode ：Color CCD image visual instruction input
Program backup ：USB interface
Application field
RASEM is a manufacturer of PCB splitter, mainly used in PCBA splitter process in high-end manufacturing industry. The application industry covers SMT/EMS, home appliances, solar energy, automotive electronics, military, semiconductor, medical equipment and so on.
