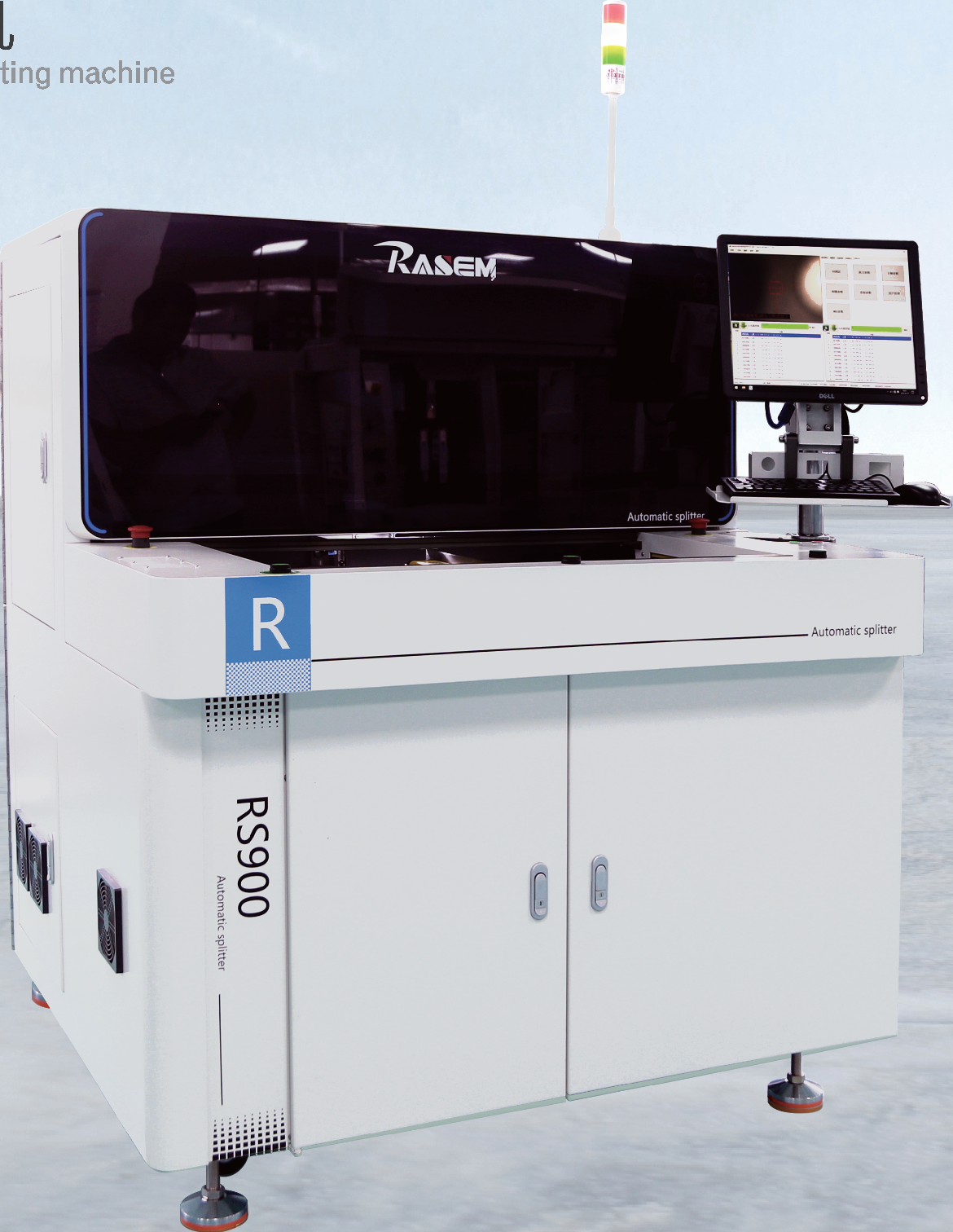

RS-900 High-precision visual board splitting machine
Technical features:
1. Follow the dust removal
2. excellent four-axis product design
3. excellent closed cutting design
4.laser displacement detector
5. Flying digital cameras
6. large area static elimination
7.built-in dust collector device
8. Active cover plate
9. Intelligent tool
Device Parameters
Working mode ：Offline
Working table ：Double table
Cover plate system ：Manual/Automatic (optional)
Visual system ：High resolution CCD
Effective cutting size ：MAX:340*380mm
Maximum PCB thickness ：5mm
Cutting function ：Straight line, circle line, arc, oblique line
Machine repetition accuracy ：±0.01mm
Cutting accuracy ：±0.05mm
Maximum moving speed ：XY 1000mm/s Z 500mm/s
Maximum travel ：X:750,Y:510,Z:100mm
Spindle speed ：MAX.80000RPM
Milling cutter replacement method ：Automatic tool change
Cutting speed ：1mm/s-100mm/s
Operating interface ：Window operation interface Windows10
Program teaching mode ：Color CCD image intuitive teaching input
Program backup ：USB interface
Control mode ：Motion control module
Driving motor ：High inertia Panasonic servo motor
XYZ shaft drive mode ：Panasonic AC servo motor
Suitable for milling cutter sizes ：0.8 - 3.0 mm
Dust collection system ：Upper dust collector/lower dust collector built-in
Application field
RASEM is a manufacturer of PCB splitter, mainly used in PCBA splitter process in high-end manufacturing industry. The application industry covers SMT/EMS, home appliances, solar energy, automotive electronics, military, semiconductor, medical equipment and so on.
