key indicator

.Temperature range: 700 to 3000ºC (1292 to 5432ºF) 400 to 2000ºC (752 to 3632ºF)

.Distance coefficient ratio (D:S): 250:1

.Working environment temperature: 0 to 50ºC (32 to 120ºF)

.Dual laser and sight sighting options

.Inner red dot aiming technology, accurately aiming at the "hot" background

Product overview

The Raytek® Raynger 3i's high-temperature handheld infrared thermometer is designed to meet the performance requirements of the process in many industrial applications, including primary and secondary metal processing requiring extremely high heat environments, as well as petrochemical and power plant operations .

The rugged design of the new generation of portable pyrometers can withstand a 1m (3.2ft) drop test, and can provide up to 24 hours of longer operating cycles when powered by a rechargeable battery.

Raynger 3I plus the laser temperature measuring gun has an intuitive user interface, convenient parameter settings, allowing data analysis and trend display "on-site", as well as fast and convenient data transfer to a PC or smartphone using USB or Bluetooth®.

In order to meet the demanding requirements of high-temperature industrial environments, the Raytek 3i Plus infrared thermometer has a high optical resolution of 250:1, which can ensure accurate temperature readings at a long distance. The heat-resistant "red nose" warning detector ensures operator safety and efficiency. The dual laser and sight can be seen even in a "hot" background, making this infrared thermometer ideal for high temperature applications.

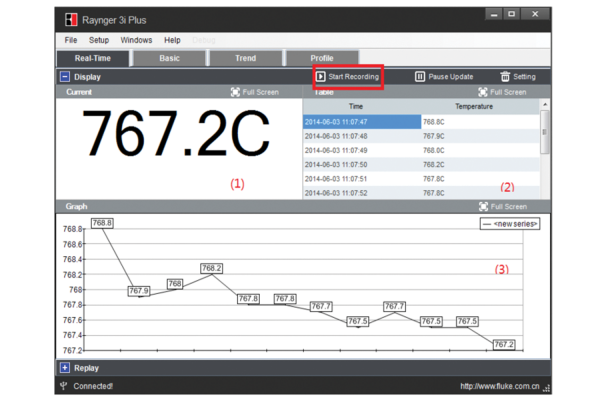

Raytek DataTemp®Raynger 3i Plus software and mobile application

The new 3i Plus DataTemp Windows PC software supports real-time communication, data storage, graphics and analysis. This innovative portable infrared thermometer includes a mobile application for fast data transfer and collaboration, as well as quick and easy on-site capture and e-mail temperature reports. It also allows real-time viewing of temperature trends.

Product parameter
