key indicator

.IR-Fusion® technology (infrared and visible light fusion), easy to find the target text, number, position and other visible light image details hidden in the infrared view

.The factory-calibrated infrared lens not only has remote electric focusing function, but also can be equipped with optional lenses such as telephoto lens, wide-angle lens, etc.

.It has diversified, multi-channel analog and switch I/O output, and can be seamlessly connected with PLC

.Sturdy housing designed to withstand the harsh environment of industrial sites, providing IP67 (NEMA 4) level on-site protection, additional air purge and water cooling accessories to avoid your worries

specifications

· -20°C to 1200°C continuous temperature detection

· Programmable logic control capability

· Infrared pixels: 320 x 240 (76,800 pixels) and 640 x 480 (307,200 pixels)

· Visible light pixels: 5 million

· Infrared and visible light dual light fusion function

· Spectral range: 8-14 μm

· Standard lens angle: 34º x 25.5º

· Multiple power supply modes: DC +12 ~ 26V or PoE power supply

· Under the protection of the high-temperature shell, it can operate normally in the environment temperature up to 200 ℃

· Dedicated ThermoView software can provide unattended industrial automation inspection process

· Complete multiple networking solutions, which can be interconnected with thermal imagers, I/O modules, PLCs, upper computers, etc.

· Standard GigE Vision interface, widely used in the field of industrial machine vision

Thermal imager full-function version software

· Features of the full-featured version of the thermal imager software include continuous or intermittent detection of temperature events, independent emissivity settings for each area of interest (AOI), and users can independently configure temperature conditions to trigger actions or alarm signals , These actions or alarm signals can interact with the I/O modules of the network.

In addition, it also provides the following analysis functions:

· Histograms and isotherms

· Multiple file export functions

· Data recording and display of key areas and temperature points

· The temperature trend recording function of the area of interest (AOI)

· Offline data files can be analyzed at the same time when the software is running in real-time mode

· Alarm and process control signal output

annex:

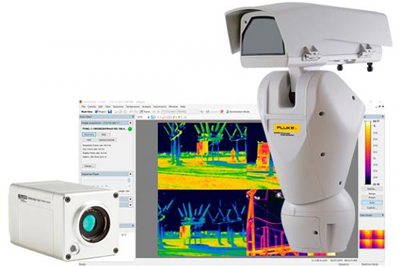

The pan-tilt system is a system with an IP66 protection grade protective shell, which can protect the infrared thermal imager from dust and water hazards during the uninterrupted monitoring process. It is also equipped with our ThermoView key asset monitoring software, which is an ideal solution for analyzing the operating status of key asset equipment

The outdoor protective cover is a protective enclosure with IP66 protection level, which can ensure that your temperature monitoring system will not be shut down due to harsh conditions. Equipped with a weatherproof device to provide a high level of protection, sun visor and a control heater adapted to the colder environment temperature.
