key indicator
.Temperature range: -40 to 3000°C (-40 to 5430°F)

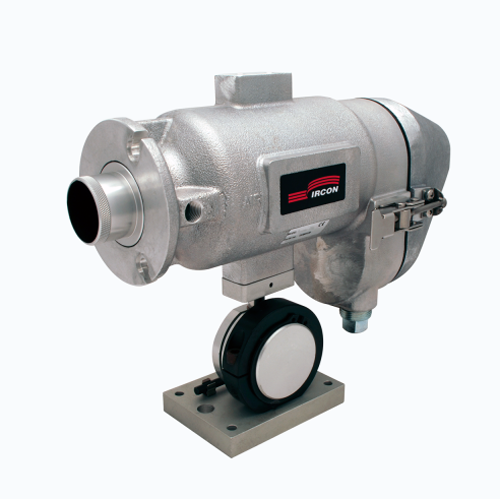

.Integrated stainless steel cooling housing
.All models are equipped with post-lens metering and laser aiming as standard
.Remote electric focus
. Simultaneous analog and digital output
The communication program monitors up to 32 Modline 7 sensors simultaneously
.Advanced signal conditioning filters (peak hold, bottom hold and average)
.System or process alarm output directly from the sensor head
.High resolution optical lens
.Background compensation, 5-year warranty
.Without cooling: 5 to 65ºC (41 to 150ºF)
.With integrated air cooling: 10 to 120ºC (50 to 250ºF)
.With integrated water cooling: 10 to 175ºC (50 to 350ºF)
.Refrigeration with high temperature water jacket: 10 to 315ºC (50 to 600ºF)
product manual

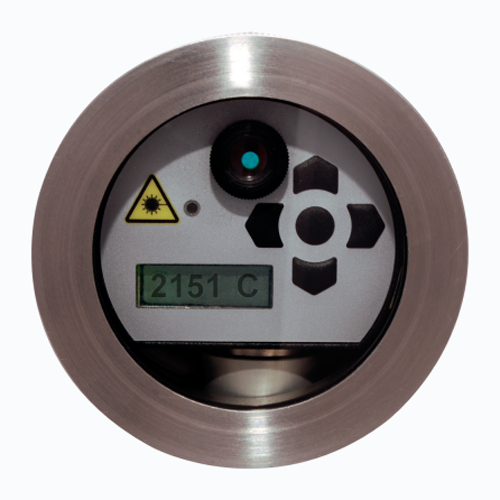

Modline®7 infrared thermometer is designed for continuous temperature monitoring and is suitable for almost any application in the field of industrial temperature process control. There are 8 different series to choose from (7V, 72, 7G, 76, 75, 77, 78 & 74). This sturdy pyrometer has an IP65 (NEMA 4) enclosure, standard electric focus control and rear-view measurement Light and laser aiming.
Modline 7 has extended temperature range, high-resolution lens and fast response time. Modline 7 provides various functions to solve your demanding application requirements. Intuitive sensor design, stainless steel housing integrated water-cooled or high-temperature water-cooled housing, reducing installation and setting time. Standardized installation accessories and universal ModView™ Pro software greatly simplify the configuration of multiple products in the factory.
ModView™ Pro software
The Modline 7 system has a set of software applications that can be connected to the sensor, including ModView Pro software. ModView Pro software uses the built-in user interface to display the target temperature and can adjust sensor parameters to remotely configure or fine-tune the sensor. You can easily change the temperature display between ºF and ºC, set or change the emissivity level, zoom range, focus sensor and turn on or off the filter, such as peak hold, bottom hold and average, and save data for future reference and Drawing. Users can also preset alarms for early alarm detection, system on/off control or quality recording.
Product parameter
| Model name / Spectral sensitivity
| temperature range | Optical resolution | Applications |
LT 8-14Micron | -40～1000 ºC | most 70:1 | Low temperature detection applications, such as film, asphalt, carpet printing and dyeing, paper coating, hot extrusion and food |
G5 5Micron | 250～2250 ºC | most 70:1 | Glass surface temperature for bending, tempering, annealing and sealing |
G7 7.9Micron | 300～900 ºC | most70:1 | Ultra-thin glass |
P3 3.43Micron | 25～450 ºC | 20:1 | Extrusion and conversion of film materials: polyethylene, polypropylene, polystyrene |
P7 7.9Micron | 10°C～360°C | 33:1 | Film production and conversion: polyester (PET), fluoroplastics, Teflon®, acrylic, nylon (nylon) |
MT 3.9Micron | 200°C～2250°C | most 70:1 | Refractory materials in the furnace, flame hardening and brazing |
HT 2.2Micron | 500°C～2000°C | 60:1 | Extruded and converted films: polyethylene, polypropylene, polystyrene |
