Insulation box
Insulation box model | Size (mm) | 100℃ | 150℃ | 200℃ | 250℃ | 280℃ |
Temperature resistance time (minutes) | Temperature resistance time (minutes) | Temperature resistance time (minutes) | Temperature resistance time (minutes) | Temperature resistance time (minutes) |
TB2064 | 20*133*210 | 25 | 12 | 9 | 8 | 6 |
TB2015 | 25*133*210 | 32 | 16 | 13 | 11 | 9 |
TB2065 | 29*133*210 | 35 | 18 | 13 | 11 | 10 |
TB2066 | 20*87*328 | 21 | 11 | 8 | 6 | 6 |
TB2067 | 25*87*328 | 28 | 15 | 11 | 10 | 8 |
TB2068 | 29*87*328 | 32 | 18 | 13 | 11 | 10 |
TB2020 | 28*84*223 | 25 | 13 | 10 | 8 | 7 |
TB2021 | 35*84*223 | 36 | 18 | 13 | 11 | 10 |
TB2100 | 28*134*225 | 25 | 13 | 10 | 8 | 7 |
TB2121 | 35*134*225 | 32 | 18 | 13 | 11 | 10 |
TB2082 | 35*88*274 | 36 | 18 | 13 | 11 | 9 |
TP2096 | 34*123*300 | 24 | 14 | 11 | 10 | 9 |
TB2075 | 31*90*229 | 30 | 15 | 11 | 9 | 8 |

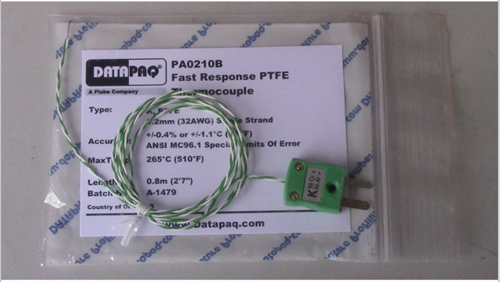

Thermocouple
The probe present in the product increases the thermal mass of the product, thereby changing (no matter how slight) its heating and cooling rate. In order to minimize the thermal quality of the probe and its impact on the product, the K-type probe attached to the reflux temperature tracker system is made of 0.2mm metal wire.
specification | temperature range | Cable insulation | Precision | length |
PA0210 | -150℃~1,370℃ | Fiberglass or PTFE | ±1.1℃ or ±.4% at 0~1,250℃ | 0.8M |
PA0830 | 0℃~600℃ | Glass fiber insulated wire |
| 1M |
PA1572A | 1000℃ |
|
| 1M |

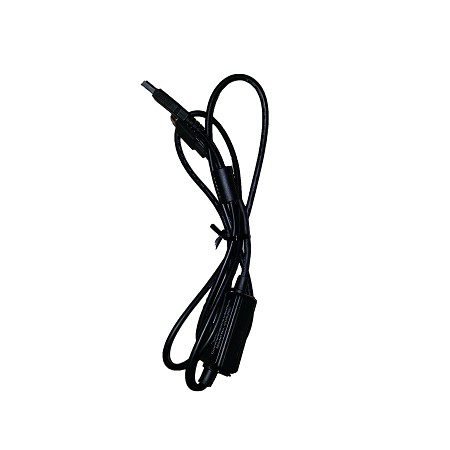

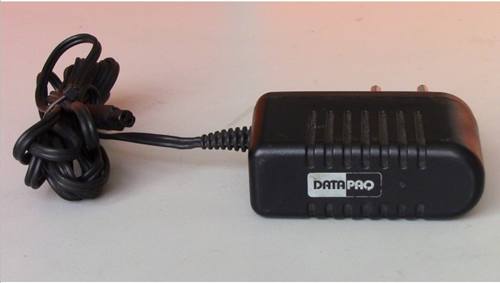

Data cable & charger & battery

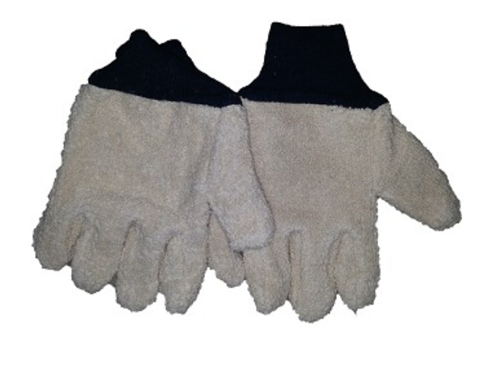

insulation gloves
At the outlet of the reflow soldering/wave soldering/gluing machine baking oven and curing oven, the instrument cannot be taken directly with bare hands, and the instrument must be taken out with gloves.
Manual & Software
DATAPAQ reflow temperature tracker general system user manual, Easy Track2 user manual
