TP3300 software
Furnace Tracker® Furnace Tracker Insight™ software starts in wizard mode, which can guide users to complete the basic setting of furnace temperature curve, including basic analysis and operation for production line operators, advanced analysis and password protection for advanced users and engineers, etc.
With the help of the wizard, use the high temperature furnace, product and formula information to set up the process file, these details will be saved and can be changed at any time
Set up your own "alarm" system to warn you when the process exceeds specifications
Open multiple temperature profile files and instantly compare data from each run
The analysis tabs are arranged along the bottom of the screen to use the following functions: maximum/minimum, time at temperature, rise/fall, slope, peak difference, temperature uniformity measurement, view data, alarms, etc.
Available in 14 languages, including corresponding help
High-temperature furnace Insight basic software-Compared with the complete DATAPAQ Insight, this simplified version of the Insight software is very suitable for users who can use basic analysis to meet the requirements of their applications.
With TM21 wireless (RF) and Bluetooth (Bluetooth®) functions with full real-time support
Simplified summary of new process and furnace parameters
New contour map analysis for two-dimensional product heat map analysis for visual inspection of cold and hot spots
Time and slope analysis at temperature, with alarm function
Access the recorder calibration certificate for instant printing
Available in 14 languages, including corresponding help
Heat treatment furnace analysis system

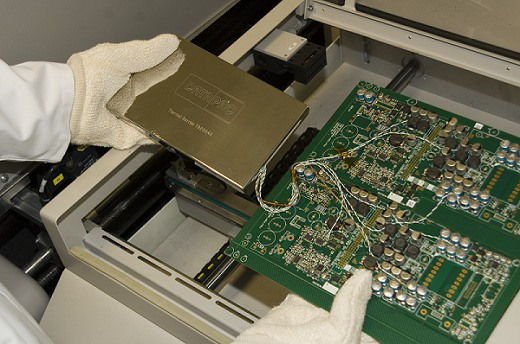

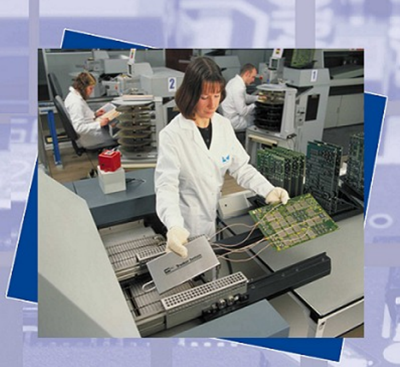

Application of furnace temperature meter in electronics industry
Host parameters:
model | TP3300 |
Number of channels | 20 channels |
Size (height*width*length) | 20*98*200mm |
weight | 0.65kg |
Thermocouple type | Type K, using industry standard miniature sockets (Type N and T can also be ordered) |
Temperature range | -100 °C to 1,370 °C |
Precision | +/- 0.3 °C (Sampling interval: 0.1 second to 50 minutes without telemetry, 1 second to 50 minutes with wireless telemetry) |
Resolution | 0.1 °C |
Sampling rate | 50 milliseconds to 10 minutes |
Working temperature | 85°C Note: In order to maintain the accuracy of the reading, the recorder will shut down at this temperature and warn the operator |
Start trigger | Manual, rising temperature, time (start recorder) |
Stop trigger | Manual, lower temperature (stop the recorder) |
Storage | 3,600,000 data points |
Battery Life | Up to 25 hours |
Charging time | 1.5 hours (starting from zero with a USB power socket), 14 hours (charging from a computer) |
Multiple operation capability | Up to 10 temperature measurement runs can be performed before downloading to the computer |
Communication | USB A to USB mini B connection cable |
Bluetooth | Reset/download and real-time data collection within 5 meters |
Thermal insulation box parameters
Insulation box model | TB2096 |
image |
|
weight | 2kg |
Size (height*width*length) | 34*123*300mm |
Heat resistance time temperature | 100℃ | 150℃ | 200℃ | 250℃ | 280℃ |
Duration (minutes) | 24 | 14 | 11 | 10 | 9 |
