TP3 software
Furnace Tracker® Furnace Tracker Insight™ software starts in wizard mode, which can guide users to complete the basic setting of furnace temperature curve, including basic analysis and operation for production line operators, advanced analysis and password protection for advanced users and engineers, etc.
With the help of the wizard, use the high temperature furnace, product and formula information to set up the process file, these details will be saved and can be changed at any time
Set up your own "alarm" system to warn you when the process exceeds specifications

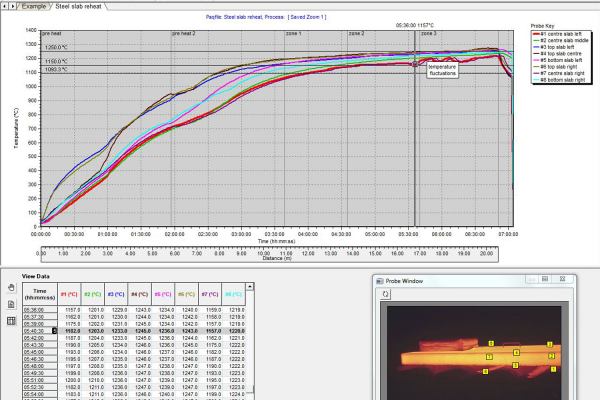

Open multiple temperature profile files and instantly compare data from each run
The analysis tabs are arranged along the bottom of the screen to use the following functions: maximum/minimum, time at temperature, rise/fall, slope, peak difference, temperature uniformity measurement, view data, alarms, etc.
Available in 14 languages, including corresponding help
High-temperature furnace Insight basic software-Compared with the complete DATAPAQ Insight, this simplified version of the Insight software is very suitable for users who can use basic analysis to meet the requirements of their applications.
With TM21 wireless (RF) and Bluetooth (Bluetooth®) functions with full real-time support
Simplified summary of new process and furnace parameters
New contour map analysis for two-dimensional product heat map analysis for visual inspection of cold and hot spots
Time and slope analysis at temperature, with alarm function
Access the recorder calibration certificate for instant printing
Available in 14 languages, including corresponding help
Heat treatment furnace analysis system

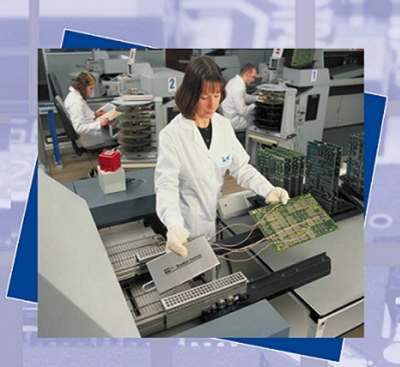

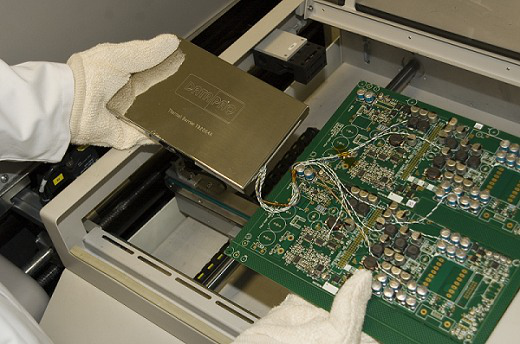

Application of furnace temperature meter in electronics industry
Host parameters:
model | TP3016 | TP3016 |
Number of channels | 10 channels | 20 channels |
weight | 1.15kg | 1.10kg |
Size (length*width*height) | 200*98*20 |
Sampling interval | 3 channels 0.1S, 10 channels 0.3S, 20 channels 1.0S |
Thermocouple type | Type K |
Precision | ±0.3℃ |
Working temperature | 70℃ |
Temperature range | -100℃~1370℃ |
RAM | 3.2M | 3.6M |
Multiple measurements | Maximum storage of 10 individual measurements |
battery | Ni-MH rechargeable battery Ni-MH rechargeable battery |
Battery Life | 1 second sampling interval, available for 80 hours |

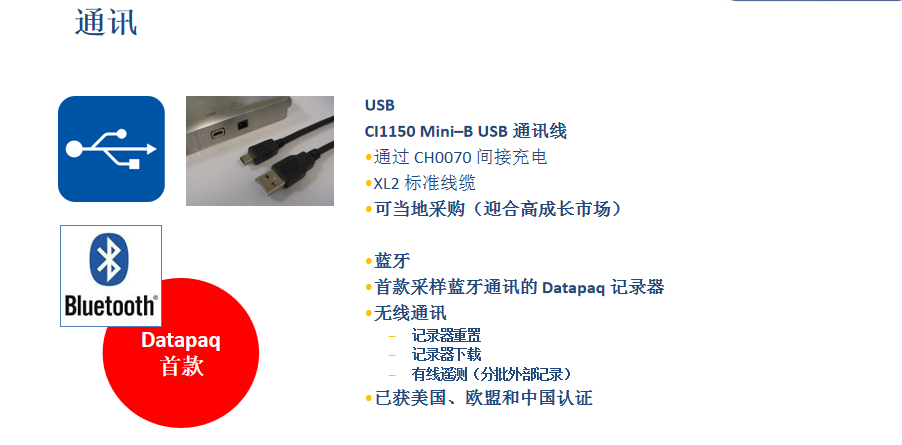

Communication | USB or Bluetooth connection USB or Bluetooth connection |
Telemetry capability | Hard-wired telemetry technology. Standard (cable or Bluetooth), radio frequency radio telemetry technology |
Memory
Storage capacity can fully meet the needs of detailed temperature measurement data (even the longest single run or multiple runs)
Number of channels | Total storage of data points | Maximum running time
Sampling interval (5 seconds)*
|
Maximum running time
Sampling interval (1 second)*
|
20 | 3.6M (180,000 readings x 20 channels) | 250hour | 50hour |
10 | 3.2M (321,792 readings x 10 channels) | 446hour | 89hour |
1 | 0.73M (735,525 readings x 1 channel) | 1021hour | 204hour |
Run multiple times
20 channels 5 second sampling interval-storage capacity = 250 hours total (10 runs)
Storage capacity is not equally divided — allocated on demand, so a single run can be longer than 25 hours when needed
* The maximum operating time may be limited by the battery
