DP5662 is suitable for occasions where both height and width are strictly limited.
●Sturdy
Datapaq DP5 adopts "one-piece" aluminum shell, which can ensure the
Maximum protection of electronic equipment.
●Easy to use
The system can be started or stopped with two buttons, which is easy to operate.
●Always standby
It can be charged from any USB socket, so the recorder is always on standby. USB charging and recording for more than 24 hours on a single charge, these features make Datapaq DP5 "responsive".
●Save time
Multi-temperature curve storage function Before downloading to the computer for detailed analysis, the recorder can store up to 10 temperature curves. This allows multiple furnaces to be quickly verified without wasting time. Get immediate results from the process. A powerful built-in radio transmitter provides real-time data from within the process in harsh environments, thereby opening a "window" through which the process can be seen and speeding up failures Search and process optimization process.

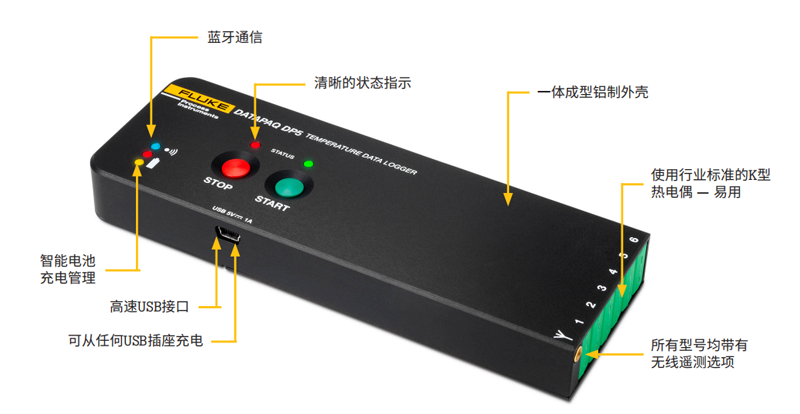

DP5662 recorder function diagram
Host parameters
model | DP5662 |
Number of channels | 6 channels |
Size (height*width*length) | 20*57*165mm |
weight | 0.3kg |
Thermocouple type | Type K, using industry standard miniature sockets (Type N and T can also be ordered) |
Temperature range | -100 °C to1,370 °C |
Precision | +/- 0.5 °C (When the sampling interval is 0.4 seconds) |
Resolution | 0.1 °C |
Sampling rate | 50 milliseconds to 10 minutes |
Working temperature | 85°C Note: In order to maintain the accuracy of the reading, the recorder will shut down at this temperature and warn the operator |
Start trigger | Manual, rising temperature, time (start recorder) |
Stop trigger | Manual, lower temperature (stop the recorder) |
Storage | 50,000 readings per channel (fixed) |
Battery Life | Up to 25 hours |
Charging time | 1.5 hours (starting from zero with a USB power socket), 14 hours (charging from a computer) |
Multiple operation capability | Up to 10 temperature measurement runs can be performed before downloading to the computer |
Communication | USB A to USB mini B connection cable |
Bluetooth | Reset/download and real-time data collection within 5 meters |
Thermal insulation box parameters
Insulation box model | TB2020 | TB2021 |
image |
|
|
Introduction |
Small height and narrow insulation box:
Used for temperature measurement of small products with limited furnace width and height.
| Narrow thermal insulation box: suitable for limited width, but there are enough heat-resistant materials to cope with rapid repeated use. If the height is limited, consider TB2020. |
weight | 0.5kg | 0.65kg |
Size (height*width*length) | 28*84*223mm | 35*84*223mm |
Heat resistance time temperature | 200℃ | 250℃ | 280℃ | 200℃ | 250℃ | 280℃ |
Duration (minutes) | 10 | 8 | 7 | 13 | 11 | 10 |
