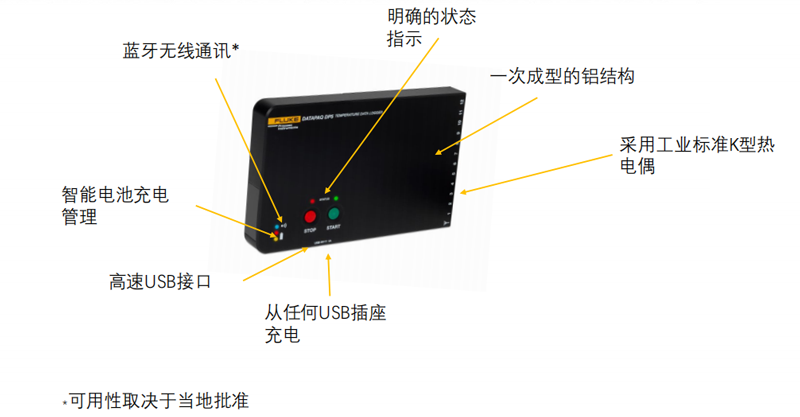

DP5612-Core Value
• Low cost ownership
• The recorder is durable-conformal coating electronic assembly packaged in an aluminum case.
• When the battery can no longer be used, it only takes 5 minutes to replace the battery.
• Lowest usage cost
• Standard thermocouple socket means that if preferred, thermocouples can be purchased locally.
• Communication cables can be purchased locally
• The battery is fast-charged, and it takes only 90 minutes to go from discharge to full charge. The charger can be purchased locally.
• service support
• If a malfunction occurs, the diagnostic information can be read from the recorder and sent directly to the local service center for quick

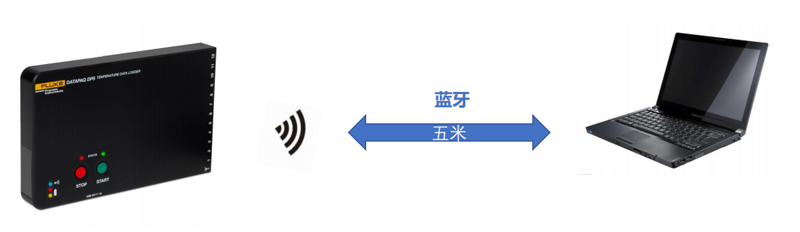

Features-Bluetooth
The DP5612 Bluetooth function can perform resetting and downloading of the instrument within a range of five meters, and can also perform real-time temperature monitoring, which is more convenient to use and effectively protects the hardware interface of the instrument to a certain extent. It is a leading technology in the industry.

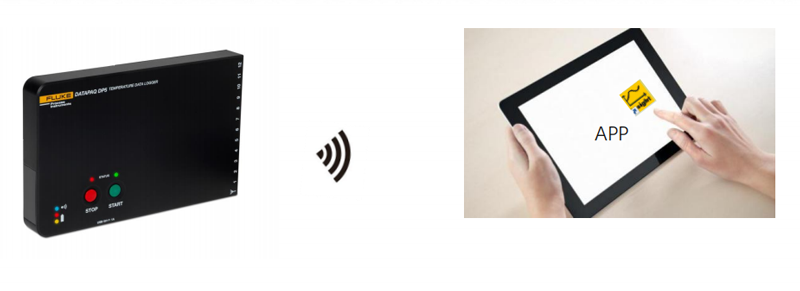

Features-APP
The APP function is the most advanced function in the DATAPAQ furnace temperature tester DP5 series or even the entire furnace temperature meter industry. It can directly operate the instrument through a tablet computer, organize the furnace temperature data, and carry out temperature testing in any place. Provide customers with the most convenient way to use.

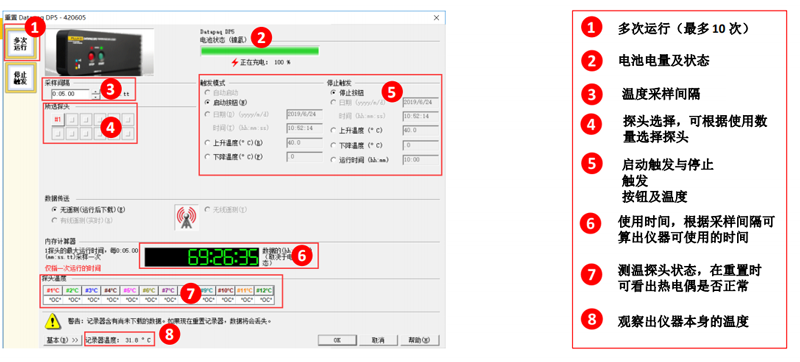

Special function-multiple measurements
DP5612-key features
Host parameters:
model | DP5612 |
Number of channels | 12 channels |
Size (height*width*length) | 20*106*165mm |
weight | 0.3kg |
Thermocouple type | Type K, using industry standard miniature sockets (Type N and T can also be ordered) |
Temperature range | -100 °C to 1,370 °C |
Precision | +/- 0.5 °C (at 0.4 second sampling interval) |
Resolution | 0.1 °C |
Sampling rate | 50 milliseconds to 10 minutes |
Working temperature | 85°C Note: In order to maintain the accuracy of the reading, the recorder will shut down at this temperature and warn the operator |
Start trigger | Manual, rising temperature, time (start recorder) |
Stop trigger | Manual, lower temperature (stop the recorder) |
Storage | 50,000 readings per channel (fixed) |
Battery Life | Up to 25 hours |
Charging time | 1.5 hours (starting from zero with a USB power socket), 14 hours (charging from a computer) |
Multiple operation capability | Up to 10 temperature measurement runs can be performed before downloading to the computer |
Communication | USB A to USB mini B connection cable |
Bluetooth | Reset/download and real-time data collection within 5 meters |
Thermal insulation box parameters
Insulation box model | TB2100 | TB2121 |
image |
|
|
Introduction |
Low-height 12-channel insulation box:
It is mainly used for convection soldering or infrared reflow soldering processes where the process is highly restricted and requires the use of 12 channels.
| Standard 12-channel thermal insulation box: mainly used for convection soldering or infrared reflow soldering process. |
weight | 0.7kg | 0.8kg |
Size (height*width*length) | 28*134*225mm | 35*134*225mm |
Heat resistance time temperature | 200℃ | 250℃ | 280℃ | 200℃ | 250℃ | 280℃ |
Duration (minutes) | 10 | 8 | 7 | 13 | 11 | 10 |
