Features
Heating controller QUICK 378FA
1. High frequency eddy current heating technology, rapid heating;
2. Sensor front technology, strong temperature compensation;
3. Intelligent temperature control system, accurate and stable temperature;
4. Abnormal temperature alarm and output function;
5. RS485 communication function, which can communicate with PC/PLC, monitor and set the temperature in real time to ensure the welding process.

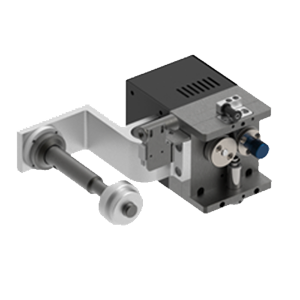

Tin delivery agency
Product Image |
|
|
model | QUICK 371T | QUICK 371TI |
Applicable tin wire diameter | 0.5-0.6mm | 0.5-1.2mm |
0.8-1.2mm |
Features |
1. Independent components, easy maintenance and replacement
2. Suitable for various tin wire diameters
3. Standard tin shortage alarm function
|
1. With tin-breaking function (tooth blade), effectively prevent splashing
2. Independent components, easy maintenance and replacement
3. Suitable for various tin wire diameters
4. Standard tin shortage alarm function
|
Device parameters
Product Image |
|
|
|
model | QUICK ET9394FZB | QUICK ET9494FZB | QUICK ET9594FAZB |
power supply | 100~240VAC | 100~240VAC | 100~240VAC |
power | 600W | 600W | 600W |
Motor control axis | 4axis | 4axis | 4axis |
Axis dynamic range | X/Y axis | 300 mm | 400 mm | 500mm |
Z axis | 100 mm | 100 mm | 100 mm |
R axis | 300° | 300° | 300° |
Processable product range | 260*300 mm | 340*400 mm | 400*400 mm |
Shaft speed range | X/Y axis | 0.1～800 （mm/sec） | 0.1～800 （mm/sec） | 0.1～800 （mm/sec） |
Z axis | 0.1～300 （mm/sec） | 0.1～300 （mm/sec） | 0.1～300 （mm/sec） |
R axis | 0.1-600°/sec | 0.1-600°/sec | 0.1-600°/sec |
Repeat position accuracy | X/Y/Z axis | ±0.01mm | ±0.01mm | ±0.01mm |
R axis | 0.2° | 0.2° | 0.2° |
Load weight | Y axis | 8 Kg | 8 Kg | 8 Kg |
Z axis | 3 Kg | 3 Kg | 3 Kg |
Teaching file capacity | Up to 999 files, up to 60000 points |
Processing file capacity | Up to 255 files | Up to 255 files | Up to 255 files |
Use environment | Humidity | 0～40℃ | 0～40℃ | 0～40℃ |
Humidity | 20％～90％(No condensation) | 20％～90％(No condensation) | 20％～90％(No condensation) |
Dimensions W×D×H | 500*490*900mm | 600*590*900mm | 700*590*900mm |
weight | 65Kg | 70Kg | 100Kg |
