9E 4-axis welding machine QUICK 9394EZB/9494EZB/9594EYAZB

Features

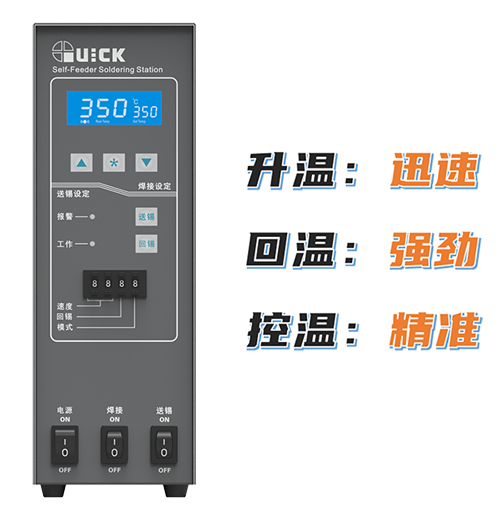

Heating controller QUICK 378FA

1. High frequency eddy current heating technology, rapid heating;

2. Intelligent temperature control system, accurate and stable temperature;

3. Abnormal temperature alarm and output function;

4. RS485 communication function, which can communicate with PC/PLC, monitor and set the temperature in real time to ensure the welding process.

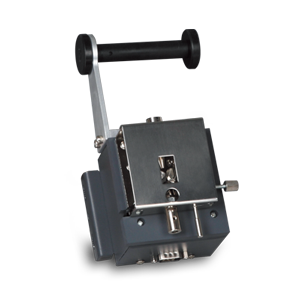

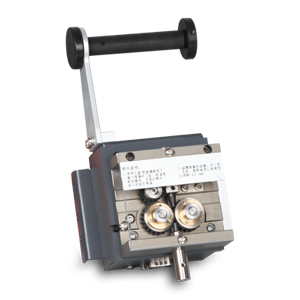

Tin delivery agency

Product Image
model	QUICK 371H	QUICK 371HI
Applicable tin wire diameter	0.5-0.6mm	0.5-1.2mm
Applicable tin wire diameter	0.8-1.2mm	0.5-1.2mm
Features	1. Independent components, easy maintenance and replacement 2. Suitable for various tin wire diameters 3. Standard tin shortage alarm function	1. With tin-breaking function (tooth blade), effectively prevent splashing 2. Independent components, easy maintenance and replacement 3. Suitable for various tin wire diameters 4. Standard tin shortage alarm function

Device parameters

Equipment pictures
model		QUICK ET9394EZB	QUICK ET9494EZB	QUICK ET9594EAZB
power supply		100~240VAC	100~240VAC	100~240VAC
power		600W	600W	600W
Motor control axis		4axis	4axis	4axis
Axis dynamic range	X/Yaxis	300 mm	400 mm	500 /400mm
	Zaxis	100 mm	100 mm	100 mm
	Raxis	0-300°	0-300°	0-300°
Processable product range		260*300 mm	340*400 mm	400*400 mm
Shaft speed range	X/Yaxis	0.1～800 （mm/sec）	0.1～800 （mm/sec）	0.1～800 （mm/sec）
	Zaxis	0.1～300 （mm/sec）	0.1～300 （mm/sec）	0.1～300 （mm/sec）
	Raxis	0.1-600°/sec	0.1-600°/sec	0.1-600°/sec
Repeat position accuracy	X/Y/Zaxis	±0.01mm	±0.01mm	±0.01mm
Repeat position accuracy	Raxis	0.2°	0.2°	0.2°
Load weight	Yaxis	8 Kg	8 Kg	8 Kg
Load weight	Zaxis	3 Kg	3 Kg	3 Kg
Teaching file capacity		Up to 999 files, up to 60000 points
Processing file capacity		Up to 255 files	Up to 255 files	Up to 255 files
Use environment	Humidity	0～40℃	0～40℃	0～40℃
Use environment	Humidity	20％～90％(No condensation)	20％～90％(No condensation)	20％～90％(No condensation)
Dimensions W×D×H		596589847 mm	695689847 mm	795689847 mm
weight		65Kg	80Kg	90Kg
