9E 3-axis welding machine QUICK 9393EZB/9493EZB/9593EYAZB

Features

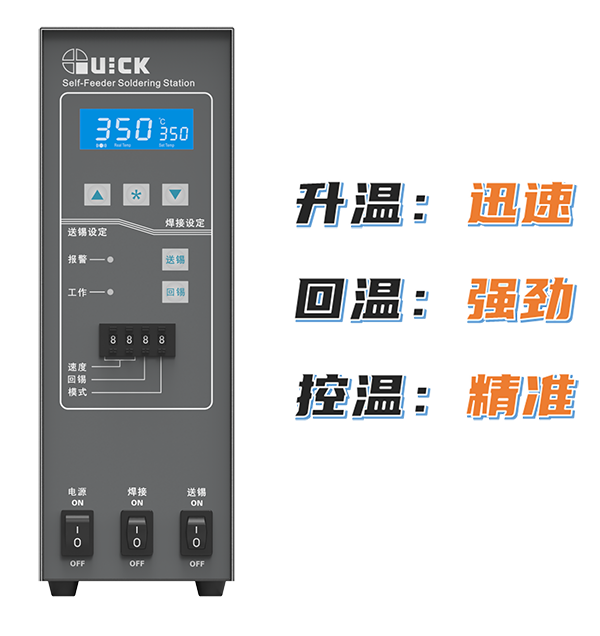

Heating controller QUICK 378FA

1. High frequency eddy current heating technology, rapid heating;

2. Intelligent temperature control system, accurate and stable temperature;

3. Abnormal temperature alarm and output function;

4. RS485 communication function, which can communicate with PC/PLC, monitor and set the temperature in real time to ensure the welding process.

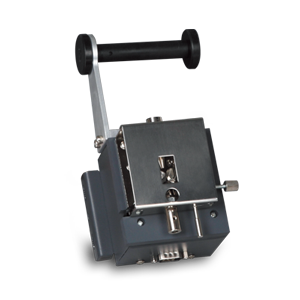

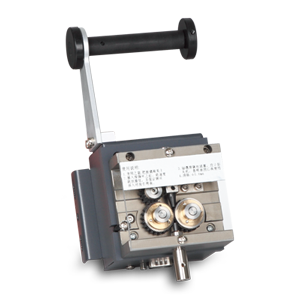

Tin delivery agency

Product Image
model	QUICK 371H	QUICK 371HI
Applicable tin wire diameter	0.5-0.6mm	0.5-1.2mm
Applicable tin wire diameter	0.8-1.2mm	0.5-1.2mm
Features	1. Independent components, easy maintenance and replacement 2. Suitable for various tin wire diameters 3. Standard tin shortage alarm function	1. With tin-breaking function (tooth blade), effectively prevent splashing 2. Independent components, easy maintenance and replacement 3. Suitable for various tin wire diameters 4. Standard tin shortage alarm function

Device parameters

Product Image
model		QUICK ET9393EZB	QUICK ET9493EZB	QUICK ET9593EAZB
power supply		100~240VAC	100~240VAC	100~240VAC
power		500W	500W	500W
Motor control axis		3axis	3axis	3axis
Axis dynamic range	X/Yaxis	300 mm	400 mm	500 /400mm
Axis dynamic range	Zaxis	100 mm	100 mm	100 mm
Processable product range		240*300 mm	340*400 mm	400*400 mm
Shaft speed range	X/Yaxis	0.1～800 （mm/sec）	0.1～800 （mm/sec）	0.1～800 （mm/sec）
Shaft speed range	Zaxis	0.1～300 （mm/sec）	0.1～300 （mm/sec）	0.1～300 （mm/sec）
Repeat position accuracy	X/Y/Zaxis	±0.01mm	±0.01mm	±0.01mm
Load weight	Yaxis	8 Kg	8 Kg	8 Kg
Load weight	Zaxis	5 Kg	5 Kg	5 Kg
Load weight		Up to 999 files, up to 60000 points
Processing file capacity		Up to 255 files	Up to 255 files	Up to 255 files
Use environment	Temperature	0～40℃	0～40℃	0～40℃
Use environment	Temperature	20％～90％(No condensation)	20％～90％(No condensation)	20％～90％(No condensation)
Dimensions W×D×H		595590702mm	695690700mm	795689700mm
weight		60Kg	70Kg	80Kg
