Feature

1. Intelligent flow control: The closed-loop control of flow ensures constant suction and saves more consumables.

2. Intelligent peripherals (such as soldering robot/smart soldering station) can control the work and sleep of the purification system, which is more energy-efficient.

3. Intelligently control the speed of the brushless motor, effectively improving the life of the motor.

4. Unique vortex wind wheel design, stronger suction.

5. Split filter design, the life of the filter element is prolonged, and the cost of consumables is lower.

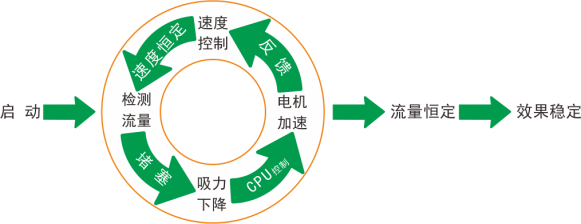

flow control

—— Through the closed-loop control of the flow rate, the suction is kept constant and consumables are saved ——

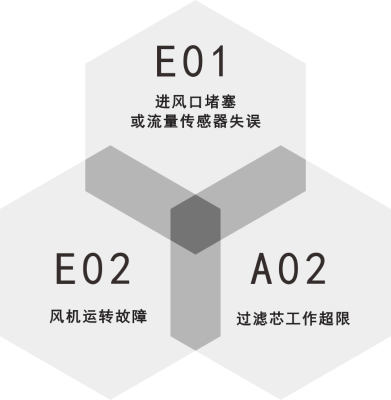

Three major alarm functions

—— A new flow sensor is added to control the motor speed in real time to ensure constant flow and stable filtering effect ——

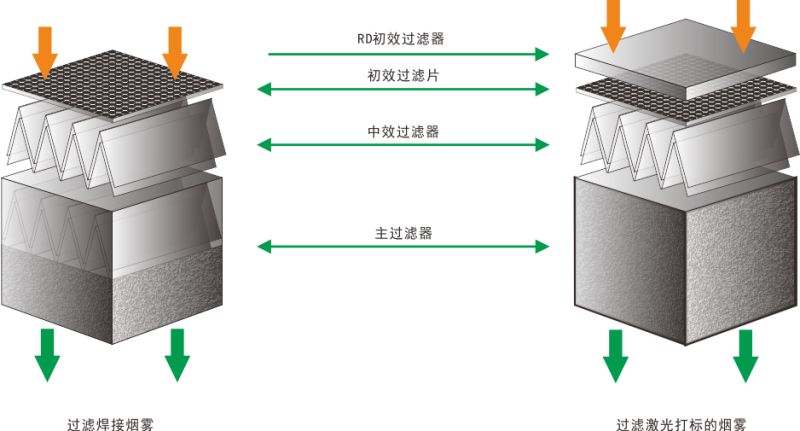

filter device

First, harmful smoke passes through the primary filter to filter out larger particulate matter;

Then it passes through a medium-efficiency filter and a high-efficiency filter. It filters particles larger than 0.3 microns from the airflow with an efficiency of 99.97%. This filter is a fibrous glass filtration system.

This process is mainly a physical process.

The other part uses a gas filter to purify the air. This process is mainly a process of physical and chemical interaction.

The gas filter is mainly aimed at gases such as finer particles and volatile organic compounds. The physical adsorption characteristics of activated carbon and the cooperation of chemical materials are used to complete the harmless treatment of the gas.

Comparison of smoke purification filter system and traditional ducted exhaust

● The traditional ducted fan directly discharges polluted air to the outdoors, causing pollution to the outdoor environment, and at the same time, it does not meet environmental protection requirements.

● Traditional ducted exhaust will discharge indoor air-conditioning or heating to the outdoors at the same time, usually up to hundreds of thousands of cubic meters per hour, causing overloading of air-conditioning refrigeration equipment or heating equipment, and invisible energy waste, cracking smoke The purification system belongs to indoor circulation.

● The ducted exhaust is fixed installation, cannot be moved, and is not suitable for the re-layout adjustment of the production line.

● The ducted exhaust is a rated power motor, which is responsible for the overall operation of the entire factory and workshop. It cannot be independently switched for the designated production line. It is always working at full power and energy is wasted.

● The traditional pipeline type, after using for a period of time, causes the smoking effect to be discounted, the pipeline accumulates a lot of dust in the later stage, it is difficult to clean the sticky flux, etc., and there are certain safety risks.

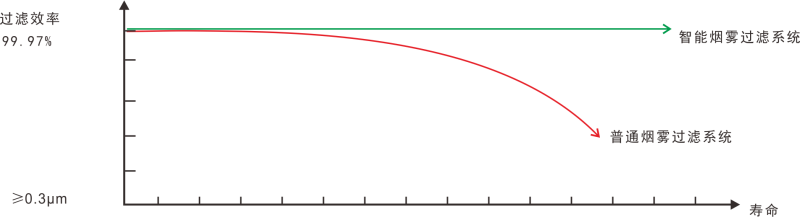

Comparison of efficiency life curves

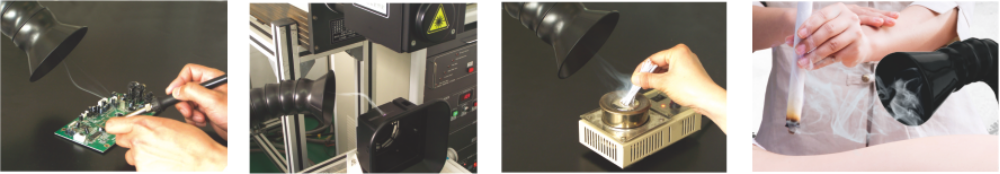

Applications

● Soldering iron welding station

● Tin furnace, wave soldering, reflow furnace

● Laser welding, engraving, marking, cutting

● Chemical laboratory, medical treatment, beauty, etc.

Specification

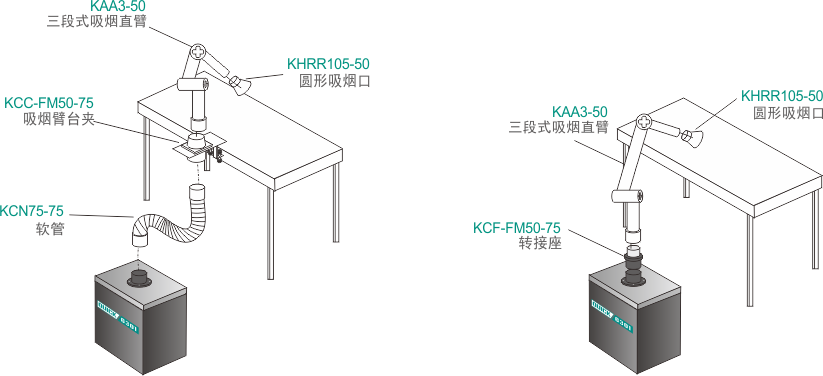

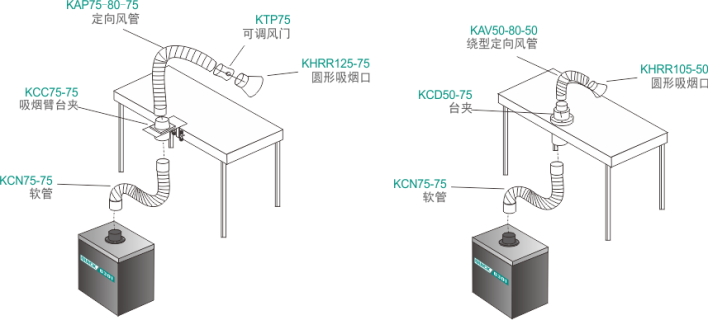

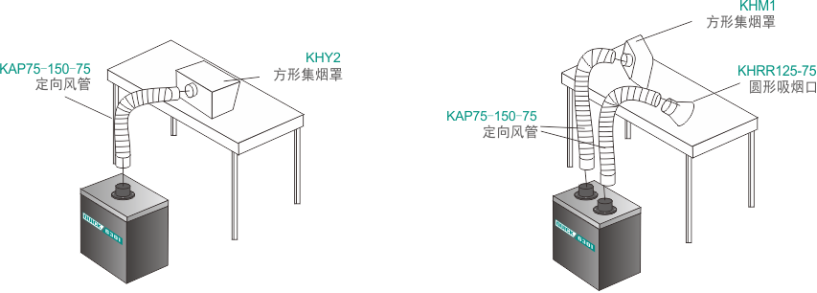

Installation method
