Feature
1. The installation is simple and convenient, no additional pipes are required, which is conducive to the clean and beautiful work space.
2. The dual filtration design ensures that harmful substances in the smoke are filtered out to protect the safety of the human body. The primary filter can be replaced separately, extending the service life of the main filter.
3. The built-in circulating air filtering method avoids venting the indoor air-conditioning/heating to the outside, which truly saves energy and meets national environmental protection requirements.
4. High-power DC brushless motor, large air volume, strong suction, and long life.
5. Low noise design.
6. Single station design, adjustable air volume, directional air duct adjustment and free positioning.
Specification
model | QUICK 6101B |
Voltage | 220V |
power | 120W |
Station | 1 |
Fan flow | 275m³/h |
System flow (including filter device) | 160m³/h |
Filtration efficiency (0.3 microns) | 99.97% |
Directional duct | φ75mm*1500mm |
Static pressure | 1600 Pa |
noise | < 65dB |
Dimensions | 420*250*650mm |
weight | approximately36kg |

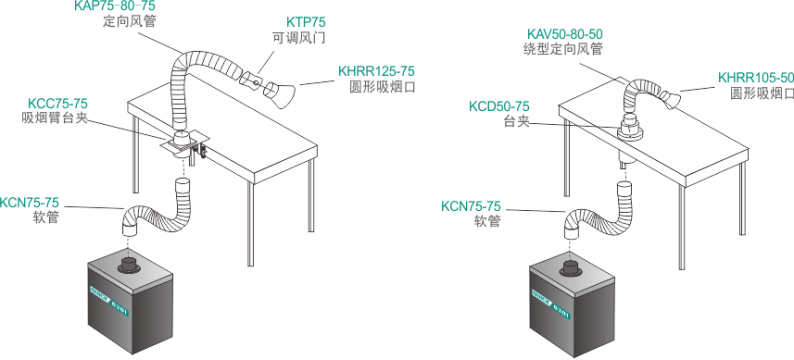

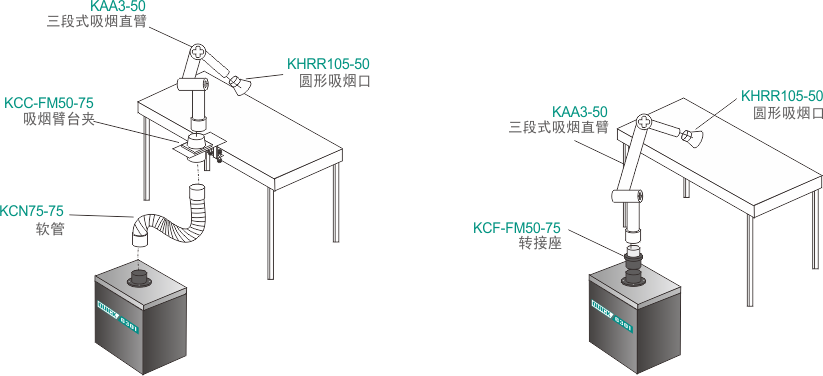

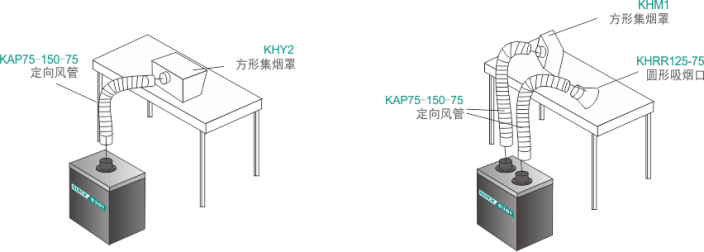

Installation method
