Feature
1. The ion balance value can reach ±10V, which can quickly eliminate static electricity on charged objects.
2. Stable ion balance, external adjustment, simple and convenient.
3. Built-in silencer system, low noise.
4. High voltage adopts capacitive coupling method, which is safe and reliable.
5. 445 F gas volume is adjustable.
6. The 446 F -Ⅱ can carry two loads at the same time.

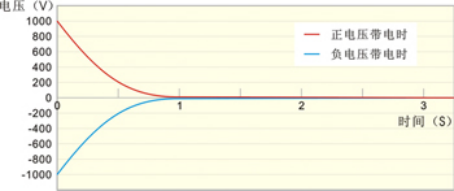

Note: Neutralize the electrostatic voltage to 10V or below in about 1 second (graph)
Neutralization characteristics: at a distance of 300mm from the front, at high air volume

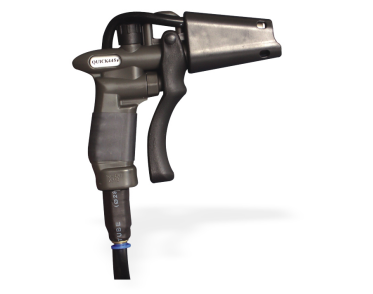

QUICK 445F ion blowing dust gun
Specification
Model number | QUICK 446F |
voltage | AC 220V |
Output high voltage | 7 KV |
Secondary short circuit current | ＜3 mA |
rated power | 15W |
weight | About 2.9Kg |
Static elimination time test
Air pressure | distance | 15 cm | 30 cm | 45 cm | 60 cm |
0.2Mpa | Static elimination time (S) | 0.9 S | 1.3 S | 1.7 S | 2.1 S |
1.0 S | 1.4 S | 2.1 S | 2.9 S |
Ion balance (V) | -1 V | +5 V | +6 V | 0 V |
0.4Mpa | Static elimination time (S) | 0.8 S | 1.0 S | 1.3 S | 1.3 S |
1.0 S | 1.3 S | 2.0 S | 2.5 S |
Ion balance (V) | 0 V | +1 V | +1 V | 0 V |
0.6Mpa | Static elimination time (S) | 0.8 S | 0 S | 1.4 S | 1.5 S |
0.9 S | 1.4 S | 1.8 S | 2.7 S |
Ion balance (V) | -2 V | -4 V | +6 V | -14 V |
Note:
1. Environment: 22℃, humidity 60-70%, the test method is based on ANSI / EOS / ESD-S3. 1-1991.
2. Time for ion neutralization from 1000V to 10V and ion balance voltage.
3. Working under 0.7Mpa air pressure, the noise is less than 80dB
