QUICK 443M-3 Three-station DC ion fan

Feature

1. The stability of ion balance is good.


2. The fan can generate a wide range of ion air flow, and the air flow is steplessly adjustable.


3. The net cover is fixed by a magnet, which is convenient for cleaning the ion emission needle.


4. The ion emission needle is plug-in type, easy to replace.


5. Three-station design, adjustable fan angle, effectively increase the area of static elimination.


6. Suspended installation can be adopted, which can greatly save space.

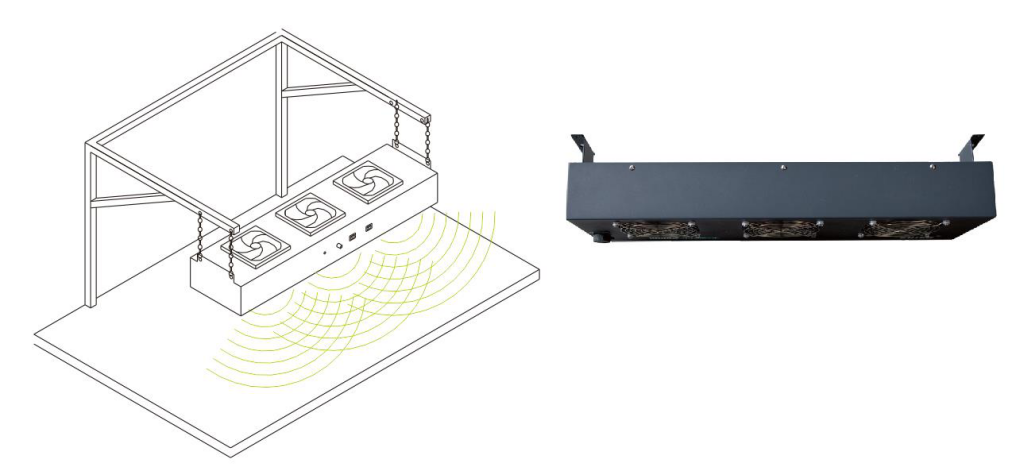

Test schematic



Specification

model

QUICK 443M-3

power

70W

The output voltage

DC   ± 5KV

Ion balance

          ± 10V

Range of ion balance alarm value

          ± 15V  ~   ± 50V

         Effective range of ion wind area

750*1500 mm

Dimensions

                              630*200*145  mm

weight

约6.0Kg
