Feature
1. Using LED to display the balance voltage in real time, the ion balance and stability are good.
2. The ion balance alarm range can be set by itself, with sound and light alarm prompts.
3. The fan can generate a wide range of air flow, and the air flow is steplessly adjustable.
4. Using RS485 communication interface, it can be connected to the computer, and up to 99 units can be connected, which is convenient for management and control.
5. The ion emission needle is plug-in type, easy to replace.
6. Small size, light weight, convenient design, adjustable fan angle.
7. The net cover is fixed by a magnet, which is convenient for cleaning the ion emission needle.

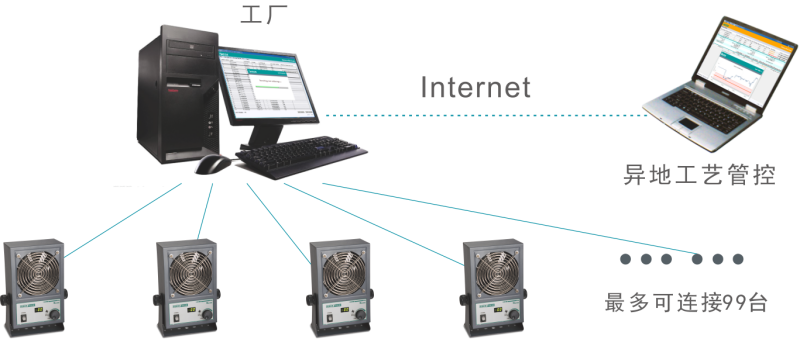

Intelligent network management

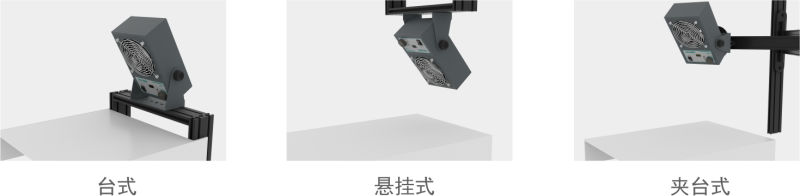

Three installation methods
Specification
model | QUICK 443C |
power | 27W |
The output voltage | DC ±5KV |
Ion balance | ±10 V |
Range of ion balance alarm value | ±15 V ~ ±50V |
Effective range of ion wind area | 400*1500 mm |
Dimensions | 190 *95*240 mm |
weight | about 2.5 Kg |
Function comparison table
Difference / Model | Is the ion balance adjustable? | Whether with self-balancing function | Whether digital display | Can I connect to the computer | Is there an ion deviation alarm function | Whether there is no high voltage output alarm |
443 C | Yes | Yes | Yes | Yes | Yes | Yes |
443 L | Yes | Yes | Yes | no | Yes | Yes |
443 M | Yes | Yes | no | no | Yes | Yes |
443 D | Yes | no | no | no | no | no |
