QUICK 443AIon fan

Feature

1. Small size, light weight, convenient design, adjustable angle.

2. Quickly neutralize static electricity.

3. The ion balance and stability are excellent.

4. Large-scale ion wind area.

5. The adjustable speed fan produces a wide range of airflow.

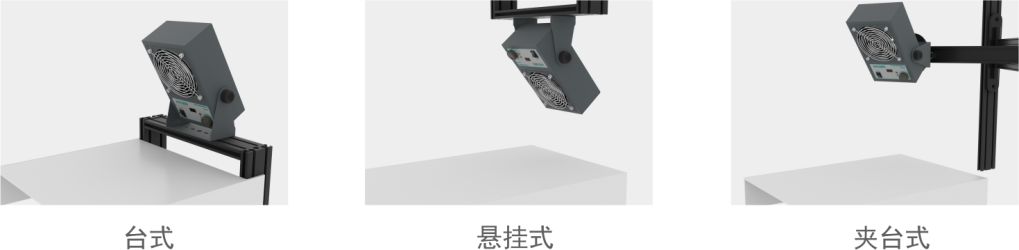

Three installation methods



specification

model

QUICK 443A

QUICK 443B

Ion balance

± 10 V

± 10 V

The output voltage

D C ± 5000 V

D C ± 5000 V

Power consumption

20W

20W

       Effective range of ion wind area

400*1500 mm

400 *1500 mm

Air volume

≤2.4 m³ / min

2.4 m³ / min

Ambient temperature

0℃ ~ 50℃

0℃ ~ 50℃

Shell material

plastic

metal

Dimensions

      135*75*190 mm

     140*83*190 mm

weight

about 1.7 Kg

about 2.1 Kg
