Feature
1. Adopt non-contact sensor, test impedance and accuracy are high, and stability is good.
2. It has four working modes and voltmeter functions, and can set the parameters of the four modes.
3. With "qualified" function, users can set "qualified" parameters according to product requirements, and have the function of detecting unqualified alarms.
4. With data storage function, 100 groups of data can be stored continuously for reference.
5. Personalized settings, set the functions used according to your needs.
6. With rechargeable battery inside, it can be used without external power supply.
7. Simple operation and easy to carry.

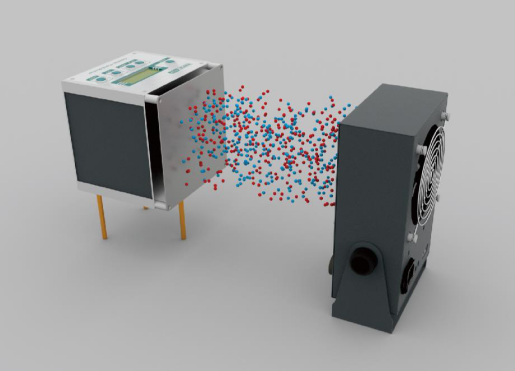

Test schematic
Specification
model | QUICK 432 |
Measuring voltage range | 0 ～ ±1000 V |
Voltage accuracy | ±( 5% + 1 word) |
Time accuracy | 1% |
Test time range | 0 ～ 600 s |
External power supply | DC 12V 400mA |
Internal rechargeable battery | 8.4V (Li) |
display | LCD display, display size 100 x24 mm |
Standby time | 600 s |
Ambient temperature | 0 ～ 40℃ |
Relative humidity | 0 ～ 70% |
Test plate | 152 x152 mm |
Dimensions | 152 (L)x152 (W)x225 (H)mm |
weight | about 1.76 kg |
Note: Manufactured according to ESD-STM3.1-2000 and ABSU/EIS/ESD-S3.1-1991.
