Feature
1. Four working modes are available.
2. Two measurement functions: a) Electrostatic measurement b) Ion balance voltage measurement.
3. Two modes of measuring potential: a) Instantaneous value of electrostatic potential b) Peak value of electrostatic potential.
4. Simple to use, convenient to locate the test distance.
5. Pocket design, easy to carry.
Specification
model | QUICK 431 |
power supply | 9V battery |
Display method | LCD digital display with synchronous display of step bar and range |
Electrostatic test range | Low range 0 ～ ±1.50 KV High range 1 ～ ±22.0 KV (High and low range automatic switching) |
Ion balance test range | 0 ～ ±2 2 0 V |
Standard Ranging | 25mm(±0.5mm) |
Test accuracy | ±(10% + 1 word) |
stand-by current | <3 uA |
Working current | <15 mA |
working environment | 0℃ ～ 50℃, relative humidity＜80% |
Machine case | Anti-static design |
Dimensions | 125*70*25 mm |
weight | About 0.2Kg (including battery and ion balance test board) |
Scope of application

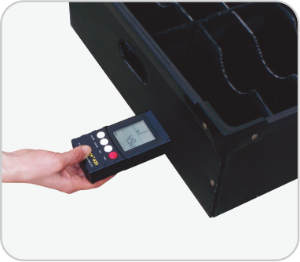

1. Measure the charge of products such as films and resins.
2. Measure the charge on the production line.
3. Measure static electricity around the equipment.

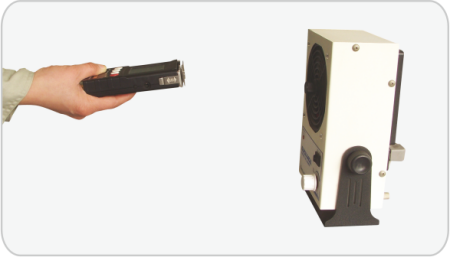

4. Measure the ion balance of the static eliminator.
