QUICK TR1350 Lead-free hot air desoldering station

—— Improve desoldering efficiency ——

	High-power design, intelligent distribution and effective protection of sufficient heat supply, power can be Up to 1300W.		Output constant flow, not affected by the size of the nozzle and the extrusion and deformation of the duct.
	The temperature can be set to be heated in sections, preheating and quick desoldering are combined, which is efficient and safe.		Automatic identification design, when the handle does not match the host, it will alarm.
	The touch keys are beautiful in appearance, waterproof and moisture-proof, easy to operate, and have a long life.		Quickly switch 3 different temperature points to meet the different welding process requirements of different products.
	The password lock function effectively protects the production process parameters from being arbitrarily modified.		Real-time monitoring of the ESD grounding function to ensure the safety of welding products' electrostatic protection.
	More intimate safety protection design, to deal with sudden power failure and restart, only after confirmation Heating to ensure safety.		Fahrenheit and Celsius two temperature scale modes can be switched freely.
	Touch-type instant sleep function.		Automatic shutdown function reduces the cost of consumables and saves energy.
	POWER software switch machine, low standby power, no useless work.

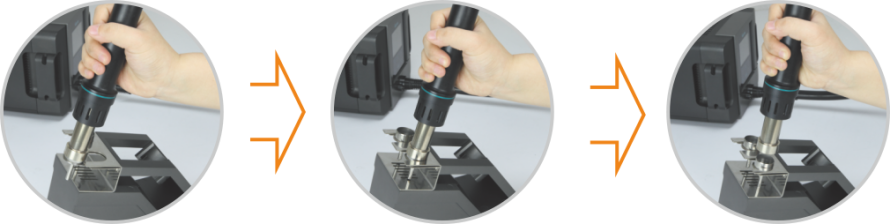

Quick change wind nozzle

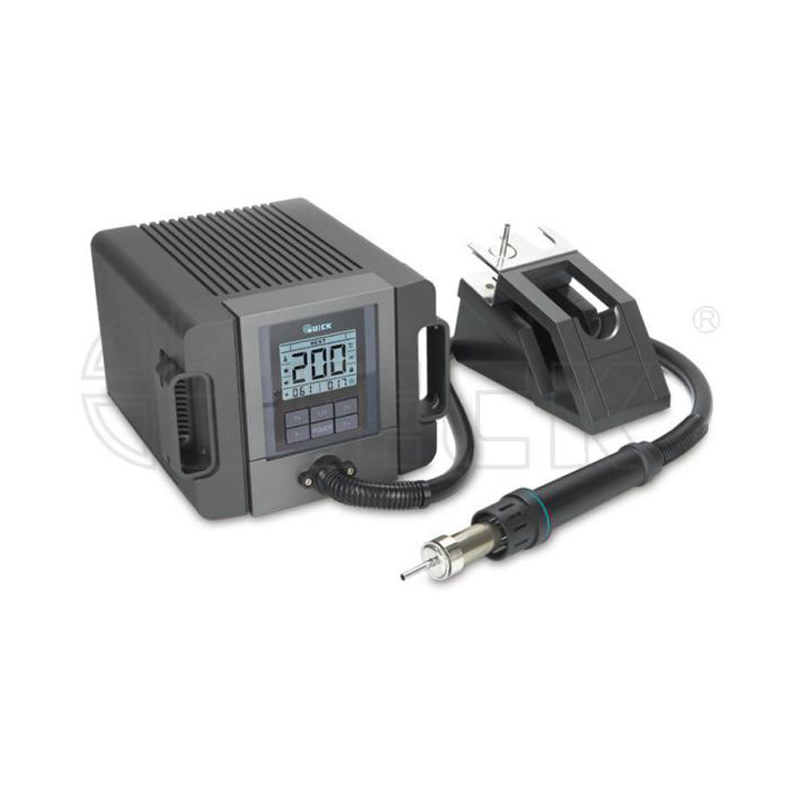

Product Image
model	TR1300	TR1300A	TR1350
power	1300W	1300W	1300W
Operating Voltage	110V/220V AC	110V/220V AC	110V/220V AC
temperature range	100~500℃	100~500℃	100~500℃
Temperature stability	±2°C (still air without load)	±2°C (still air without load)	±2°C (still air without load)
Air volume	6-70L/Min	6-70L/Min	6-70L/Min
Dimensions	215230155（mm）	215230155（mm）	215230155（mm）
Heating core model	H618A	H618A	H618A
weight	about 5.3kg	about 5.0kg	about 5.3kg
Split hot air pen	√	√	√
Fast program switching	√	√	√
ESD ground monitoring	√	√	√
Network communication	√	-	√
Automatic temperature correction	-	-	√
Programmable temperature zone	-	-	√
Partition multi-segment	-	-	√
use	● Suitable for disassembly and soldering of various components, such as: SOIC, CHIP, QFP, SOP, PLCC, SOJ, BGA, QFN ● Suitable for heat shrinkage, drying, paint removal, debonding, thawing, preheating, disinfection, glue welding, etc. ● Adjustable air volume, suitable for occasions requiring small air volume and large air volume heating ● Suitable for lead-free hot air desoldering occasions
