Innovative craft

—— Improve desoldering efficiency ——

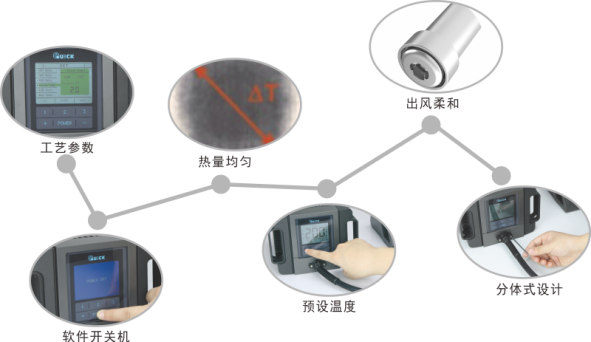

Intelligent, efficient and safe desoldering

The air volume is constant, the heat is abundant, and the efficiency is super high.

Particularly suitable for some special occasions such as low temperature desoldering, oversized components and high heat consumption.

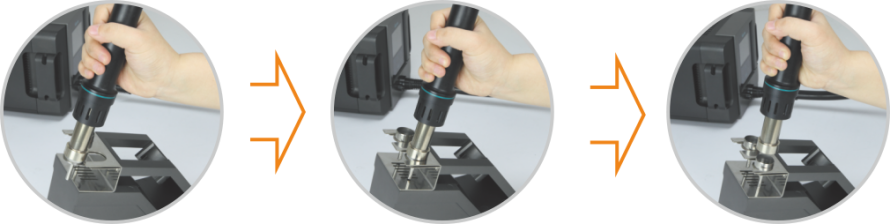

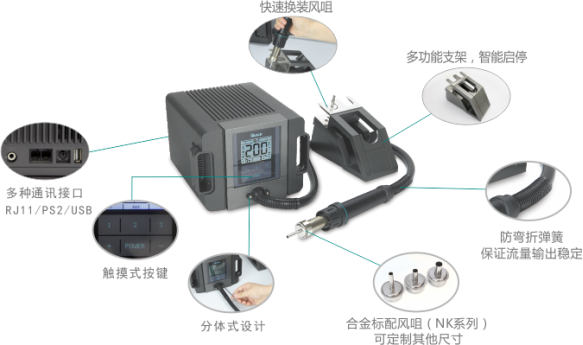

Quick change wind nozzle

Specification

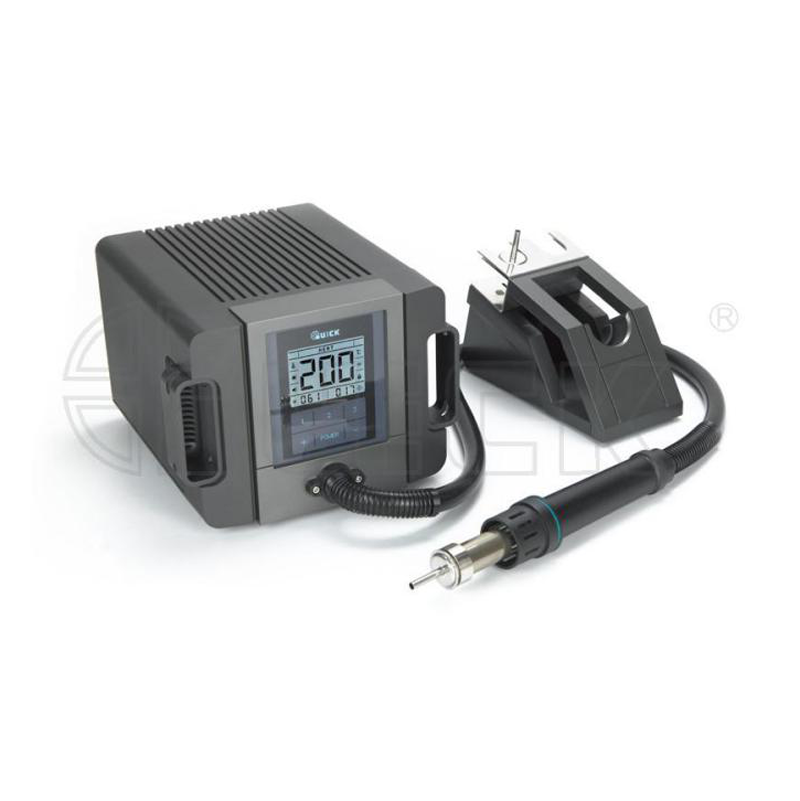

Product Image
model	TR1300	TR1300A	TR1350
power	1300W	1300W	1300W
Operating Voltage	110V/220V AC	110V/220V AC	110V/220V AC
temperature range	100~500℃	100~500℃	100~500℃
Temperature stability	±2°C (still air without load)	±2°C (still air without load)	±2°C (still air without load)
Air volume	6-70L/Min	6-70L/Min	6-70L/Min
Dimensions	215*230*155（mm）	215*230*155（mm）	215*230*155（mm）
Heating core model	H618A	H618A	H618A
weight	about 5.3kg	about 5.0kg	about 5.3kg
Split hot air pen	√	√	√
Fast program switching	√	√	√
ESD ground monitoring	√	√	√
Network communication	√	-	√
Automatic temperature correction	-	-	√
Programmable temperature zone	-	-	√
Partition multi-segment	-	-	√
use	● Suitable for disassembly and soldering of various components, such as: SOIC, CHIP, QFP, SOP, PLCC, SOJ, BGA, QFN ● Suitable for heat shrinkage, drying, paint removal, debonding, thawing, preheating, disinfection, glue welding, etc. ● Adjustable air volume, suitable for occasions requiring small air volume and large air volume heating ● Suitable for lead-free hot air desoldering occasions
