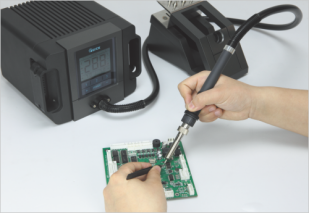

The hot air is soft and uniform, the handle is light, it is comfortable to hold, and the positioning is accurate, which effectively ensures that the adjacent devices are not thermally impacted. It is especially suitable for the desoldering of micro-CHIP components.

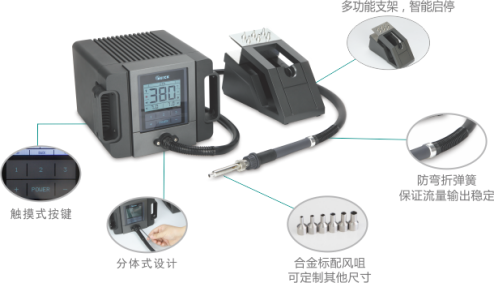

Feature

1. Ultra-light handle, more comfortable to use.

2. The plug-in design of ceramic heating element makes maintenance convenient and quick.

3. Adopt two-stage booster brushless pump, constant wind pressure and long life.

4. Multi-point temperature digital calibration, password lock function, effectively guarantee the process parameters.

5. Ultra-quiet anti-static design.

Specification

型 号	TR1100
Work rate	200W
Voltage	110V/220V AC
temperature range	100~500°C/212~842°F
Temperature stability	±2°C (still air without load)
Wind volume	1.5-7.0L/min
Heating core model	H617A
Weight	About 3.5kg
Dimensions (WxDxH)	190*190*134mm

Standard wind nozzle

name	specification
A1065	φ1.5mm（0.06in）
A1066	φ2.0mm（0.08in）
A1067	φ2.5mm（0.10in）
A1068	φ3.0mm（0.12in）
A1069	φ3.5mm（0.14in）
A1070	φ4.0mm（0.16in）
