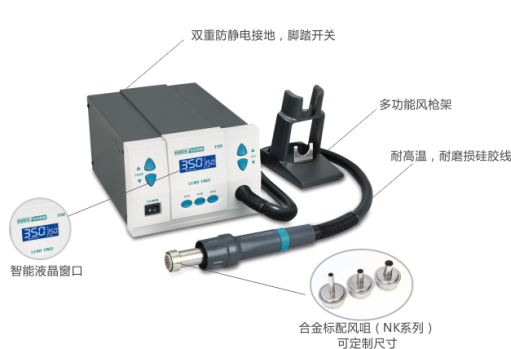

QUICK 861DW Lead-free hot air desoldering station


Feature

1. There are three working channels of CH1, CH2, and CH3, and the air volume and temperature of each channel can be set.

2. With password protection function and key lock function.

3. Convenient real-time operation, with magnetic control switch control, and the handle is placed on the handle frame to immediately enter sleep.

4. With automatic sleep function, the parameters can be set in the sleep state.

5. Sensor closed loop, microcomputer zero crossing trigger temperature control, high power, rapid temperature rise, convenient and accurate temperature adjustment, not affected by air output.

6. Using brushless vortex fan, the air flow is adjustable, the range is large, and it can be adapted to various purposes.

7. The system is equipped with an automatic large air volume cooling function to extend the life of the heating element and protect the hot air handle.




Ceramic heater










Specification

model

QUICK 861DW

power

1000W

Voltage

AC 220V

temperature range

100℃ ~ 500℃

Heating core model

H616A

Standard wind nozzle

NK1130(φ4.4)/NK2064(φ6.4)/NK2084( φ8.4)

            Air volume range

1 to 120 levels

Dimensions

                          188*245*135*mm

weight

about 3.9kg

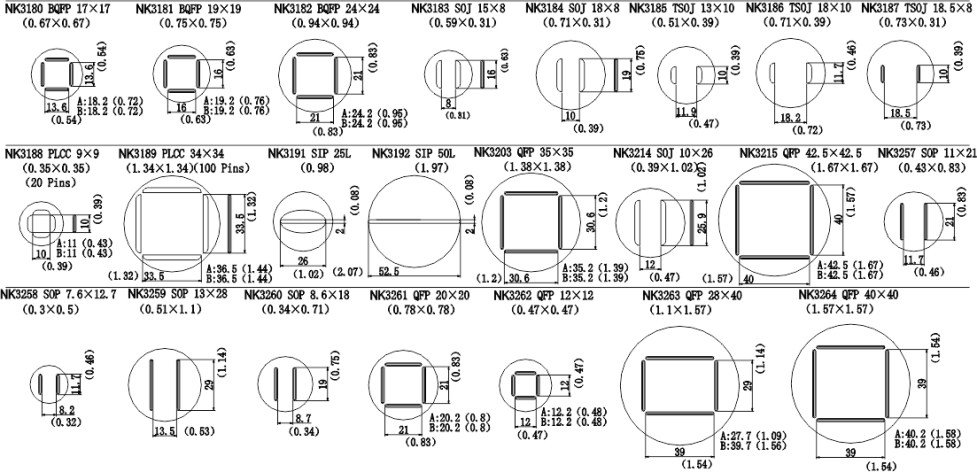

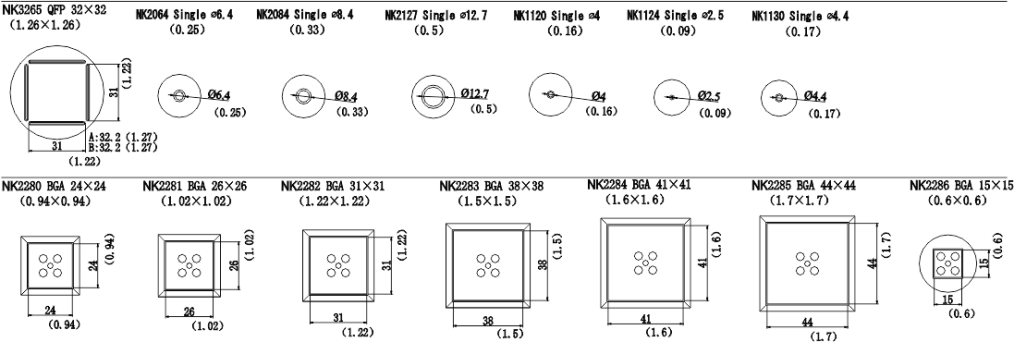

Wind Tsui
