Feature
1. There are three working channels of CH1, CH2 and CH3, and the time, air volume and temperature of each channel can be set in advance and can be modified through the CH0 channel.
2. It has a password protection function and a key lock function to protect the menu from unauthorized modification.
3. Convenient real-time operation, with automatic sleep function, the parameters can be set in the sleep state.
4. The sensor closes the loop, the microcomputer triggers the temperature control by zero crossing, the power is large, the temperature rises quickly, the temperature adjustment is convenient and accurate and stable, and it is not affected by the air output.
5. Using brushless vortex fan, the air flow is adjustable, the range is large, and it can be adapted to various purposes.
6. The system is equipped with an automatic cooling function, and at the same time uses a ceramic tube heating element, which has a long life.

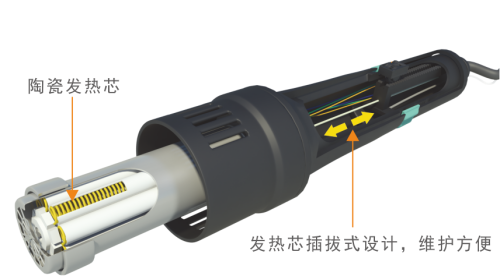

Handle diagram
Specification
model | QUICK 856AE |
power | 1300W |
Voltage | AC 220V |
temperature range | 100℃ ～ 500℃ |
Working time range | 1 ～ 999s ("---" means that it is not controlled by working time and is always in working state) |
Air volume range | 6 ～200 level |
Heating core model | H616A |
Standard wind nozzle | NK1130（φ4.4）/NK20264（φ6.4）/NK2084（φ8.4） |
Dimensions | 250*230*150 mm |
weight | about 4.4Kg |
Note: QUICK856AE has no vacuum suction pen function

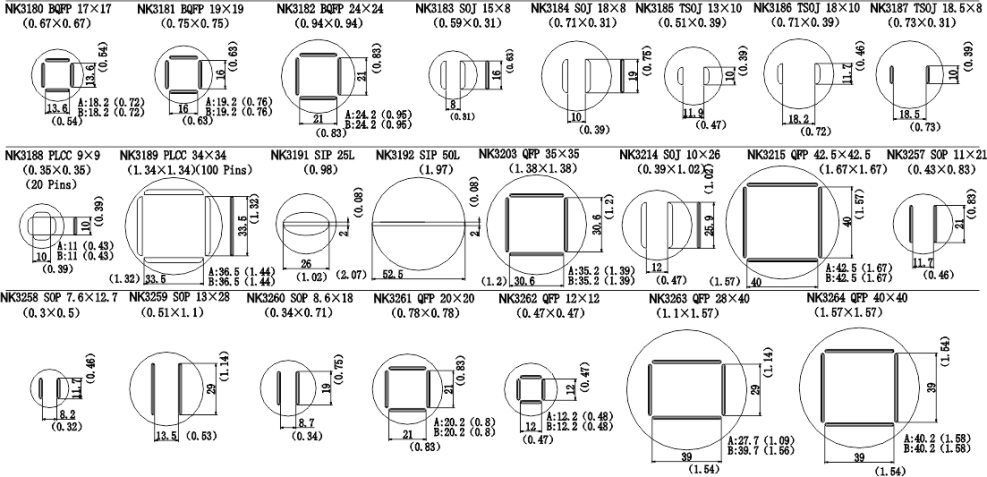

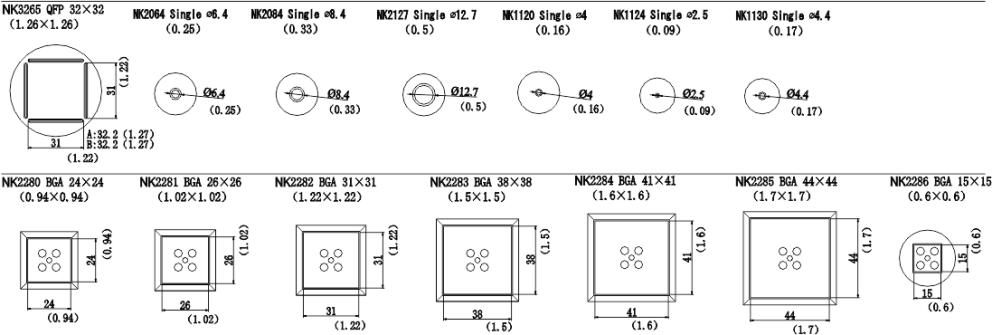

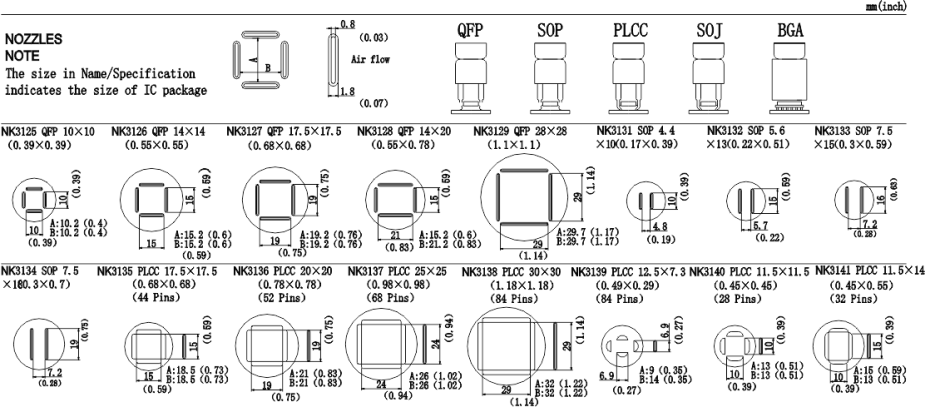

Wind Tsui
