Feature
1. Infrared ceramic heating body, fast heating, high efficiency and long life.
2. Temperature control adopts K-type thermocouple, closed loop zero-crossing trigger control, digital tube display, simple and intuitive operation.
3. It can be used in combination with QUICK 855 PG/PX to complete SMD and BGA maintenance work.
4. The lifting arm moves lightly and freely, and the operation is simple.
5. The required heating objects can be conveniently placed on the heating window or on the bracket (other configuration).
6. Two switches are used to control the power supply and heating respectively, and the temperature on the preheating table can be easily observed without heating.
7. Built-in temperature test function, convenient to detect the temperature on the PCB.
8. The external cooling fan can be controlled to work.
Specification
model | QUICK 855T+ |
power | 1600W |
Heating zone area | 260*60mm |
Heating body material | Ceramic heating element |
Temperature Sensor | K-type thermocouple |
temperature range | 50℃ ～ 350℃ |
Temperature stability | ±1℃ |
Ambient temperature | 0～40℃ |
Thermometer measuring range | Room temperature ～600℃ |
Thermometer accuracy | ±8℃ |
weight | 约13.3Kg |

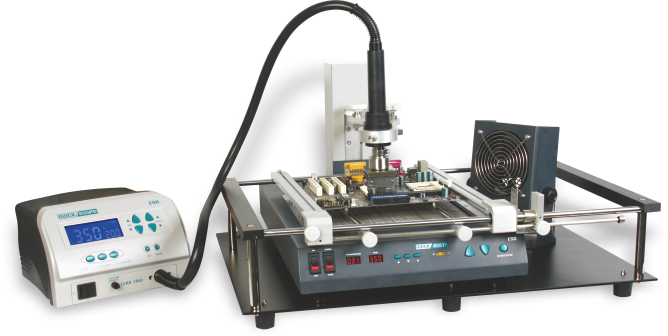

QUICK 855PG+QUICK855T+ Repair work platform combination

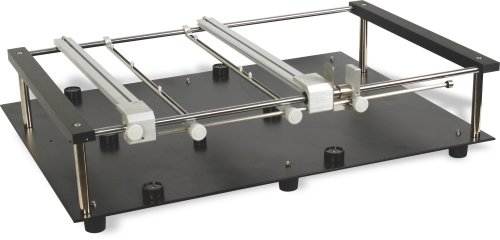

Bracket
