Feature

1. It only takes 10S to remove the chip.

2. It has a password protection function to protect the setting parameters from unauthorized modification.

3. Good desoldering success rate and desoldering speed. The whole process is divided into 6 temperature zones, and the process parameters of each program segment can be set according to the process requirements of the chip. Standardize desoldering operations.

4. With 10 program channels, different process parameters can be set separately to correspond to different desoldering conditions.

5. With vacuum suction pen, easy to use.

6. The large-screen LCD display can display information such as temperature, air volume, and working hours.

7. Digital temperature calibration is simple and convenient.

8. Foot switch or buttons control the work or sleep of the desoldering station, which is simple and convenient.

9. Accurate temperature control, through closed-loop temperature control, the temperature stability can reach ±2℃.

10. With automatic cooling and sleep function, save energy and protect the heating element.

11. The working time can be set, the range is 1-999S. "---" is continuous working status.

Specification

Model number	QUICK 855PG
Work rate	1300 W
temperature range	100℃-500℃
Wind volume	6-200级
Temperature zone	6个
Vacuum suction pen suction	0 .06 MPa
Number of process channels	10个
Heating core model	A1155
Standard wind nozzle	A1130（φ4.4）/A1121（φ6.4）/A1301（φ12.7）
Dimensions	250* 230*150mm
Weight	about 5.2 Kg

Note: The air nozzle can be customized according to actual needs.

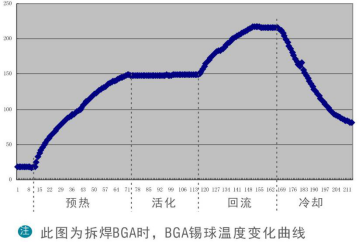

Performance Testing

*Test Conditions

1. Fix the K-type external sensor in the middle of the BGA with high temperature tape.

2. There is no preheating table at the bottom of the PCB for preheating.

3. The test equipment is FLUKE2625A.

Note: The change of the air output has no effect on the temperature.

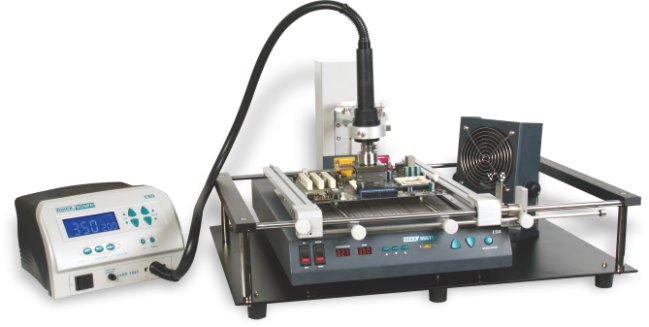

  QUICK 855PG+QUICK855T+ rework work platform combination
