Feature
1. Equipped with a password lock function, which is conducive to management and control.
2. Push-button temperature adjustment and automatic sleep/shutdown function.
3. Using digital temperature calibration, easy to operate.
4. The air gun handle has a built-in suction pen, which is easy to use.
5. Using brushless vortex fan, the air flow is steplessly adjustable, and the range is large, which can be adapted to various purposes.
6. The system is equipped with an automatic large air volume cooling function to extend the life of the heating element and protect the hot air handle.
7. Built-in vacuum pump, strong suction, no need for external vacuum system.
8. The heating system uses a closed loop sensor to control the temperature, and the temperature is accurate.
9. The handle of the soldering iron is light and comfortable to use.
Specification
Soldering station part | QUICK 713 |
power | 90W |
Soldering station temperature range | 200℃ ～ 480℃ |
Sleep temperature range | 200℃ |
Sleep time range | 0 ～ 99min |
Temperature stability | ±2℃ (no load in still air) |
Ambient temperature | 40℃ |
Soldering iron tip ground resistance | ＜2Ω |
weight | about 7.9Kg |
Desoldering station part | specification |
power | 1000 W |
Hot air temperature range | 100℃ ～ 500℃ |
Air volume | 1 ～ 120 level (120 L/min) |
Ambient temperature | 40℃ |
Temperature stability | ±2℃ (no load in still air) |
Suction gun part | specification |
heating power | 90 W |
Suction nozzle temperature | 200℃ ～ 480℃ |
Suction pump | Diaphragm |
Vacuum pressure | 600 mmHG |
Sleep time setting range | 1-100 min |

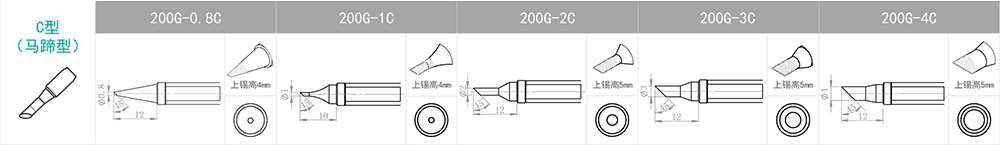

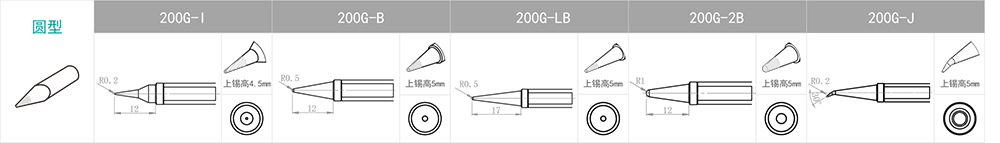

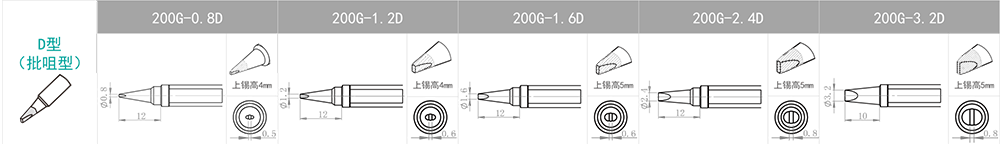

Replaceable welding tips: the following standard welding tips can be customized according to different application scenarios.
