QUICK 382AVacuum suction table

Feature

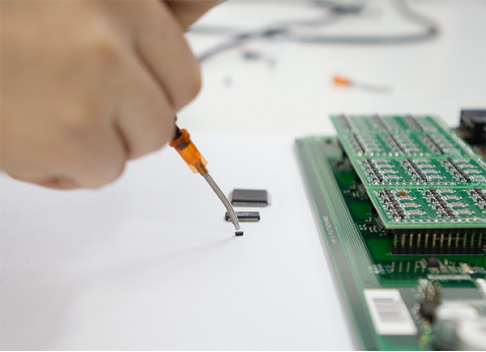

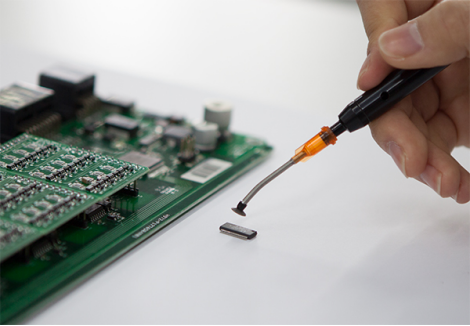

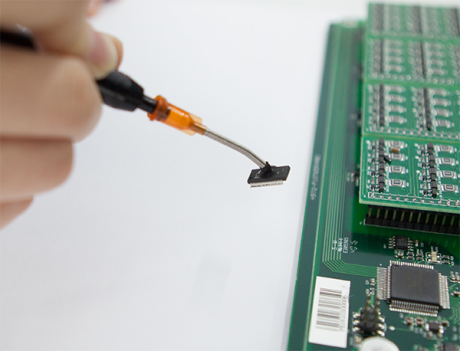

1. It is easy to absorb SMD chips, resistors, capacitors and all kinds of round and small components.

2. The built-in air pump can suck objects up to 120g in weight.

3. Anti-static design.

4. The suction nozzle and suction pad can be used in combination and can be replaced.



Specification

model

QUICK 382A

power

10W

Vacuum pump

Diaphragm

Vacuum

0.03Mpa

Suction pad

Conductive silicone rubber

Dimensions

185*157*105mm

                     weight

                                              约2.3kg

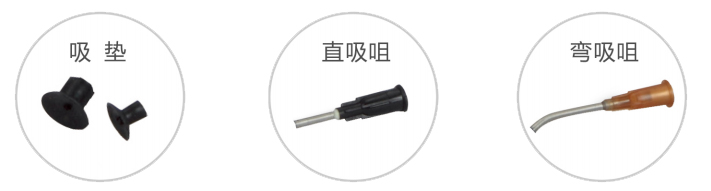

 Consumables


Suction pen

123(L)*10 (Outer diameter)

hose

1100(L)*6 (Outer diameter)

Straight nozzle

内径1.1mm

Curved nozzle

内径1.45mm

                    Suction pad

                                           6mm、8mm
