QUICK 381AVacuum suction table

Feature

1. Anti-static design, no damage to sensitive components.

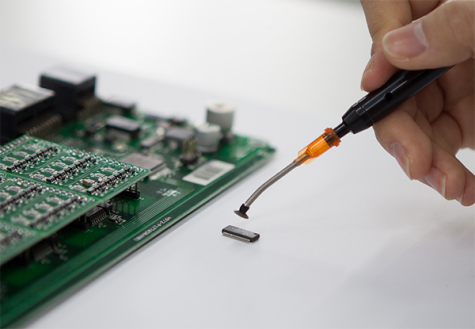

2. Humanized design of suction pen, lightweight structure.

3. The vacuum suction can be adjusted steplessly. Single station design, strong suction power, up to 180g.

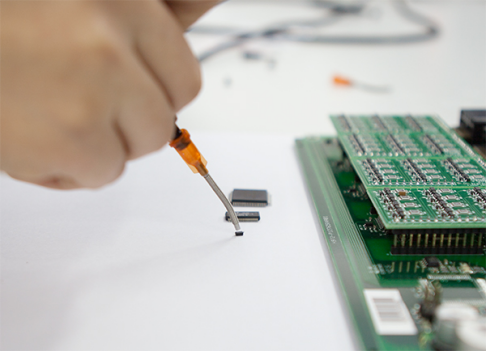

4. It can accurately and effectively control the suction and release of the chip to avoid releasing jitter.

5. Foot-operated control can effectively save electricity and relatively extend service life.

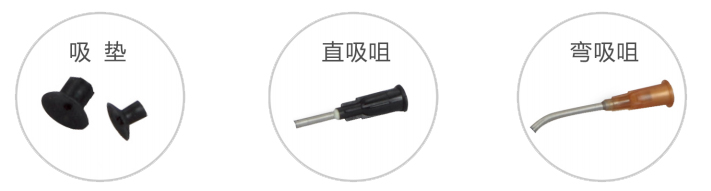

6. The suction nozzle and suction pad can be used in combination and can be replaced.



Specification



model

QUICK 381A

power

15W

Vacuum pump

Diaphragm

Vacuum

0.06Mpa

Suction pad

Conductive silicone rubber

size

130*160*110mm

                 weight

                                                   about 2.0kg

Consumables


Suction pen

123(L)*10 (Outer diameter)

hose

1100(L)*6 (Outer diameter)

Straight nozzle

the inside diameter of1.1mm

Curved nozzle

the inside diameter of1.45mm

                      Suction pad

                                           6mm、8mm
