Feature
1. The soldering iron adopts the principle of high-frequency heating, and the temperature is controlled by the K-type sensor.
2. Microcomputer control, key-press temperature adjustment, digital temperature calibration and automatic sleep function.
3. Automatic and manual tin feeding modes are available, and the tin feeding times can be set.
4. The tin-out speed, tin-out length, and tin-out interval are all adjustable, and there is an adjustable back tin function to reduce the waste of solder.

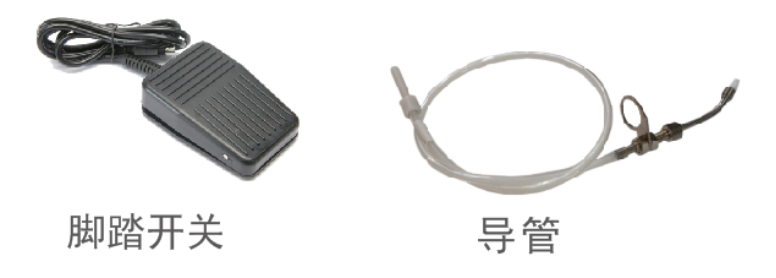

5. It can be equipped with foot-switch and manual tin-out switch.
6. It can also be used alone as a lead-free soldering station.
7. Anti-static design can prevent sensitive electronic parts from being damaged by static electricity.
Specification
model | QUICK 376D | QUICK 376D-150 |
power | 90W | 150W |
Tin breaking function | no | no |
Heating principle | High frequency eddy current | High frequency eddy current |
temperature range | 50℃～600℃ | 50℃～600℃ |
Temperature stability | ±2°C (still air without load) | ±2°C (still air without load) |
Potential of welding tip to ground | ＜2mV | ＜2mV |
Resistance of welding tip to ground | ＜2Ω | ＜2Ω |
Electric machine | Stepper motor | Stepper motor |
Tin out speed | about2.7mm/s～27mm/s (36º/s～360º/s) | about2.7mm/s～27mm/s (36º/s～360º/s) |
Out of tin length | 0～150mm | 0～150mm |
Out of tin interval time | 0～2.7s | 0～2.7s |
Back tin time | Automatic (1～9) / Manual (0) | 0～0.9s (about 0～25mm fixed speed: 360º/s) |
Tin out mode | Automatic (1～9) / Manual (0) | Automatic (1～9) / Manual (0) |
Tin wire diameter | 0.5、0.6、0.8、1.0、1.2、1.4(mm) | 0.5、0.6、0.8、1.0、1.2、1.4(mm) |
Handle model | 20H-90 | 902A |
Heating core model | H1203-90W | H1205A |
Welding tip | 200series | 500series |
weight | about4.4kg | about 4.2kg |

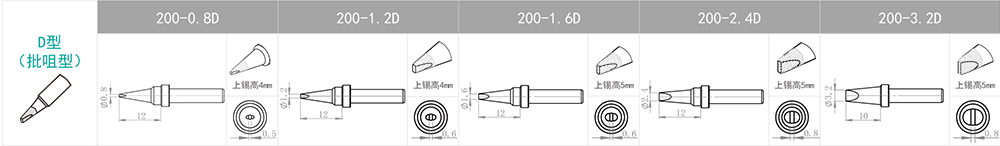

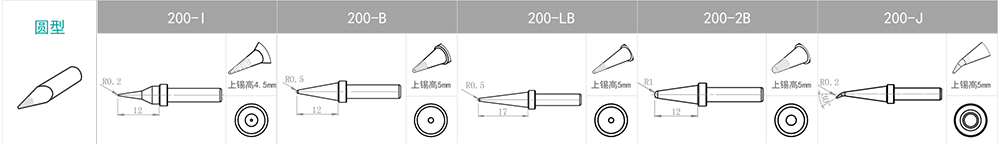

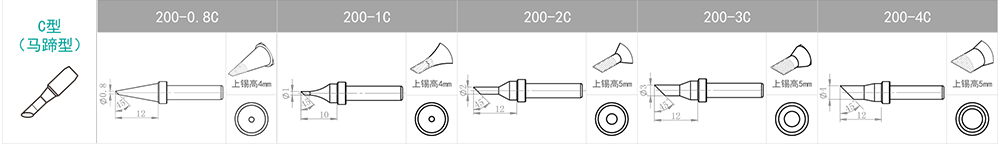

QUICK 376D replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
