Feature
1. Using high temperature resistant ceramic heating core, 24V low pressure heating, safe and reliable.
2. RTD sensor temperature control, rapid heating, accurate and stable temperature.
3. Fully automatic tin out function, DIP switch design, with tin back function to reduce the waste of solder.
4. The output speed, output quantity, output times, and output interval time can all be set.
5. The foot switch controls the tin output, automatic and human control.
6. Universally adjustable welding head, convenient for welding.

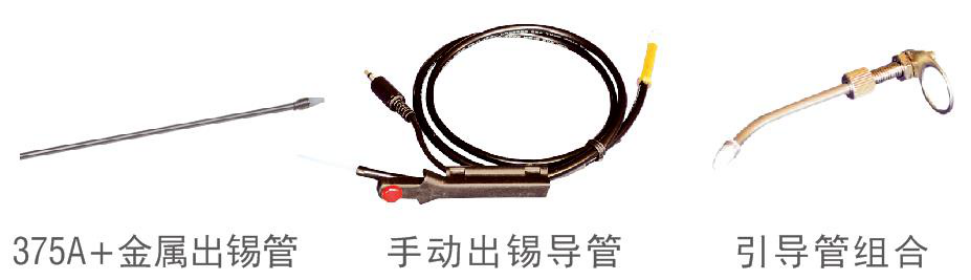

7. 375A+ adopts hard tube to produce tin.
8. 375A+ can be equipped with foot switch.
9. Suitable for connectors, connectors and other special welding work.
Specification
model | QUICK 375A+ / 375B+ |
power | 60W |
temperature range | 200℃ ～ 480℃ |
Tin wire diameter | 0.5、0.6、0.8、1.0、1.2mm |
Out of tin interval time | 0 ～ 2.7s |
Tin out speed | about 2.7mm / s ～ 27mm / s(36°/s ～ 360°/s) |
Tin output | 0～150mm |
Back tin time | 0 ～ 0.9s (about 0 ～ 25mm fixed speed: 360°/s) |
Out of tin | Automatic 1～9 / Manual (0) |
Temperature stability | ±2℃ (no load in still air) |
Available tin | ≤1kg |
Weight | about 3.0kg |
Handle model | 907E |
Welding tip | 960series |
Heating core model | A1321 |

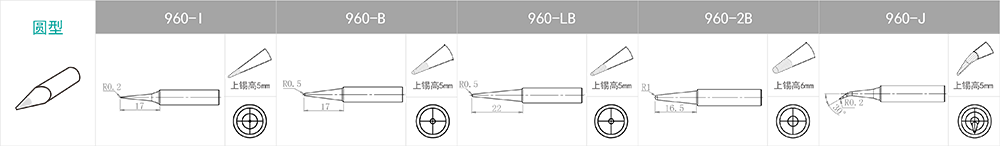

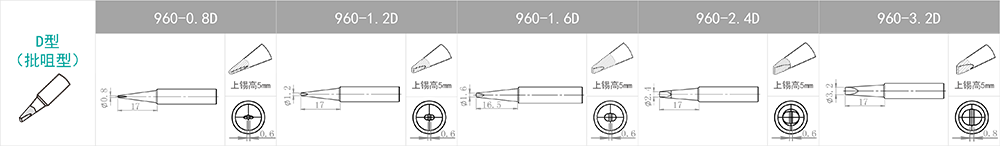

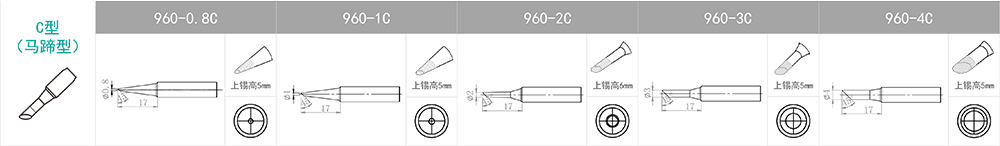

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
