QUICK 192 Soldering station tester

Feature

1. Accurately test the temperature of the soldering iron tip, ground potential and ground impedance.

2. Two-in-one design, you can choose an external sensor to measure the temperature of the tin furnace or other liquids.

3. It adopts high-reliability microcomputer to detect with high precision.

4. Comply with MIL-STD-2000 standard.

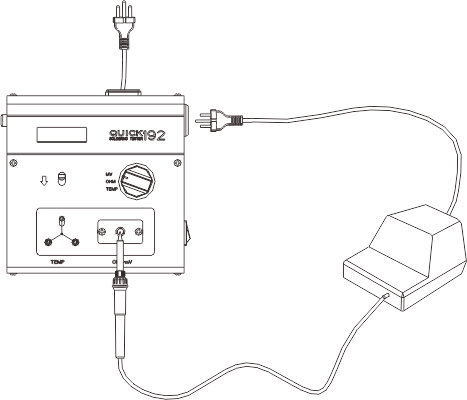

Test schematic


Specification

model

QUICK 192

Temperature

Resolution

1℃

Measuring range

0~600℃ (32°F~1200°F)

Precision

±3℃/±6°F

sensor

K-type thermocouple

Voltage

Resolution

0.1mv

Measuring range

0~90mv (AC)

Precision

±(3% + 2 words)

Comply with MIL-STD-2000 standard

Resistance

Resolution

0.1Ω

Measuring range

0~90Ω

Accuracy

±(1% + 2个 words)

Show

Liquid crystal

3 1/2 LCD digital display

Out of range

/

Work rate

2W

                  Dimensions

                                         158(L) × 150(W) × 50(H)mm

Weight

about 1.0kg

Operating environment

0~40℃ Relative humidity 0~80%
