Specification
1. The high-frequency eddy current heats up, and the welding tip heats up very quickly.
2. The sensor is placed at the top of the heating core, which can return to the temperature quickly and control the temperature accurately.
3. Intelligently distribute the output power according to the change of solder joint size, the power can reach 90W.
4. The touch buttons are beautiful in appearance, waterproof and moisture-proof, easy to operate, and have a long life.
5. Quickly switch 3 different temperature points to meet different welding process requirements of different products.
6. The password lock function effectively protects the production process parameters from being arbitrarily modified. Real-time monitoring of the ESD grounding function to ensure the safety of welding products' electrostatic protection.
7. More intimate safety protection design for power failure.
8. Free switching between two temperature scale modes in Fahrenheit and Celsius. Intelligent sleep function, capacitive sensing handle wake up.
9. The automatic shutdown function reduces the cost of consumables and saves energy.
Innovative craft
—— Improve welding quality ——
| The sensor is placed on the top of the heating core in front of it, and it can return to the temperature very quickly and control the temperature accurately. |
| As the size of the solder joint changes, the output power is intelligently allocated, and the power can reach 90W. |
 | The overall length of the welding pen is shortened, which is more ergonomic, more comfortable to use, and more suitable for precision welding. |
| Automatic identification design, when the handle does not match the host, it will alarm. |
 | The touch keys are beautiful in appearance, waterproof and moisture-proof, easy to operate, and have a long life. |
| Quickly switch 3 different temperature points to meet the different welding process requirements of different products. |
 | The password lock function effectively protects the production process parameters from being arbitrarily modified. |
| Real-time monitoring of the ESD grounding function to ensure the safety of welding products' electrostatic protection. |
 | More intimate safety protection design, it can respond to sudden power failure and restart, and will not heat up without confirmation, ensuring safety. |
| Fahrenheit and Celsius two temperature scale modes can be switched freely. |
 | Intelligent induction handle, automatic sleep, touch-type wake up. Automatic shutdown function, reduce the cost of consumables and save energy。 |
| The automatic shutdown function reduces the cost of consumables and saves energy. |

| POWER software switch machine, low standby power, no useless work. |
Function setting
Intelligent network management
—— View the temperature change curve in real time and query historical temperature data ——
Specification
Model number | TS2200 | TS2200D |
Work rate | 90W | 90W |
Heating principle | High frequency eddy current | High frequency eddy current |
Operating Voltage | 110V/220V AC | 110V/220V AC |
temperature range | 100~480°C | 100~480°C |
Temperature stability | ±2°C | ±2°C |
Resistance of welding tip to ground | ＜2Ω | ＜2Ω |
Potential of welding tip to ground | ＜2mV | ＜2mV |
Handle model | TSS31A | TSS31A |
Welding tip model | 200series | 200series |
Heating core model | H1901A | H1901A |
Sensor model | S1901A | S1901A |
Welding nozzle/heating core | Split | Split |
Computer control | have | no |
Dimensions (WxDxH) | 137*168*114mm | 137*168*114mm |
weight | about3.2kg | about3.2kg |

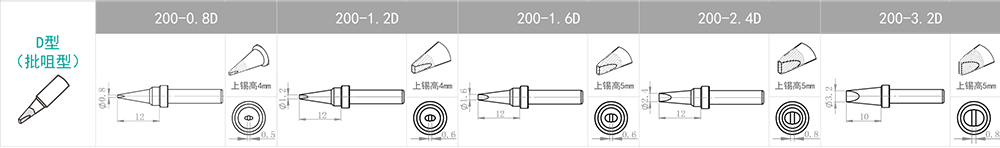

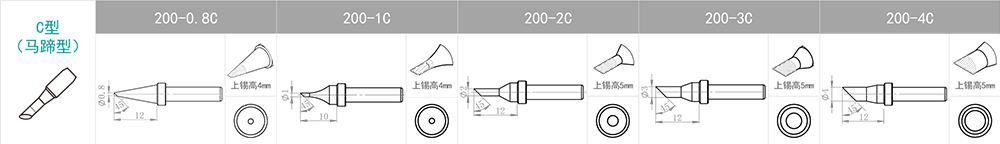

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
