QUICK TS1300 Intelligent lead-free soldering station

Feature

1. High-power ceramic heating element, front sensor.

2. Intelligent distribution of output power, power up to 300W.

3. The touch buttons are beautiful in appearance, waterproof and moisture-proof, easy to operate, and have a long life.

4. Quickly switch 3 different temperature points to meet different welding process requirements of different products.

5. The password lock function effectively protects the production process parameters from being arbitrarily modified.

6. Real-time monitoring of the ESD grounding function to ensure the safety of welding products' electrostatic protection.

7. More intimate safety protection design for power failure.

8. With temperature alarm function, two temperature scale modes of Fahrenheit and Celsius can be switched freely.

9. Smart sleep function, vibration sensor handle to wake up.

10. The automatic shutdown function reduces the cost of consumables and saves energy.

11. Ultra-high power, designed for welding with large solder joints and high heat capacity, suitable for soldering of large solder joints such as automobile wiring harness terminals, wires and cables, motors, base station antennas, shielding boxes, and grounding posts.

Innovative craft

—— Improve welding quality ——

	The sensor is placed on the top of the heating core in front of it, and it can return to the temperature very quickly and control the temperature accurately.		As the size of the solder joint changes, the output power is intelligently allocated, and the power can reach 300W.
	The overall length of the welding pen is shortened, which is more ergonomic, more comfortable to use, and more suitable for precision welding.		Automatic identification design, when the handle does not match the host, it will alarm.
	The touch keys are beautiful in appearance, waterproof and moisture-proof, easy to operate, and have a long life.		Quickly switch 3 different temperature points to meet the different welding process requirements of different products.
	The password lock function effectively protects the production process parameters from being arbitrarily modified.		Real-time monitoring of the ESD grounding function to ensure complete protection of welding products against static electricity.
	More intimate safety protection design, it can respond to sudden power failure and restart, and will not heat up without confirmation, ensuring safety.		Fahrenheit and Celsius two temperature scale modes can be switched freely.
	Intelligent induction handle, automatic sleep, touch-type wake up. The automatic shutdown function reduces the cost of consumables and saves energy.		The automatic shutdown function reduces the cost of consumables and saves energy.
	POWER software switch machine, low standby power, no useless work.

Temperature calibration


Intelligent network management

—— View the temperature change curve in real time and query historical temperature data ——


Parameter

Product Image
model	TS1100	TS1200	TS1200D	TS1300
power	90W	120W		300W
Heating principle	Resistive	Resistive		Resistive
Operating Voltage	110V/220V AC	110V/220V AC		110V/220V AC
temperature range	200~420°C	200~420°C		200~420°C
Temperature stability	±2°C (still air without load)	±2°C (still air without load)		±2°C (still air without load)
Resistance of welding tip to ground	＜2Ω	＜2Ω		＜2Ω
Potential of welding tip to ground	＜2mV	＜2mV		＜2mV
Handle model	TSS30A	TSS30B		TSS30D
Heating core model	TSS10AHeating core assembly	-		HR003-ZZ

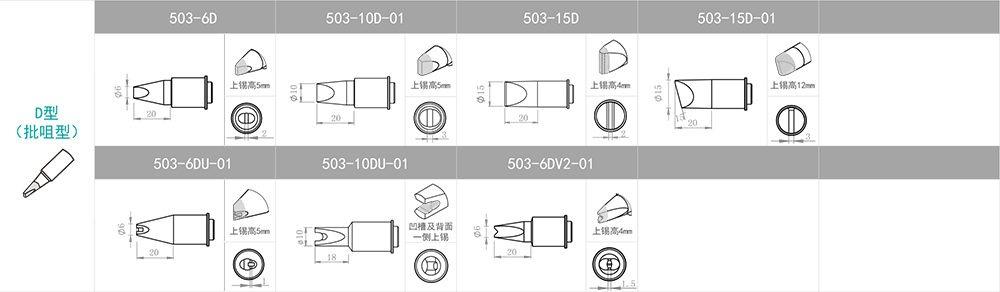

Welding tip model	960series	TSS02 series		503 series
Welding nozzle/heating core	Split	All-in-one		Split
Dimensions	11315092mm	137168114mm		190190134mm
weight	about 2.3kg	about 2.7kg		about 2.7kg
Computer control	no	have	no	have
The main function
