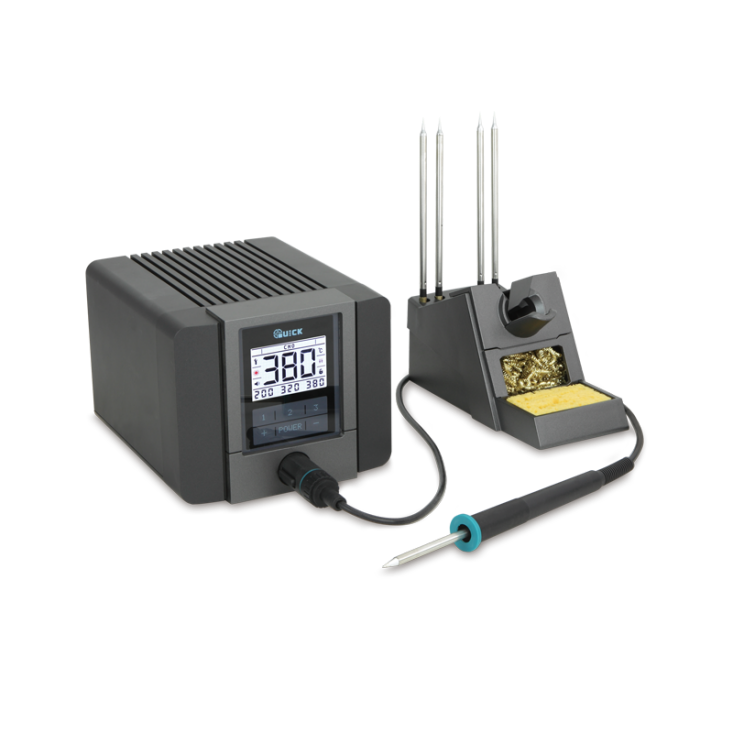

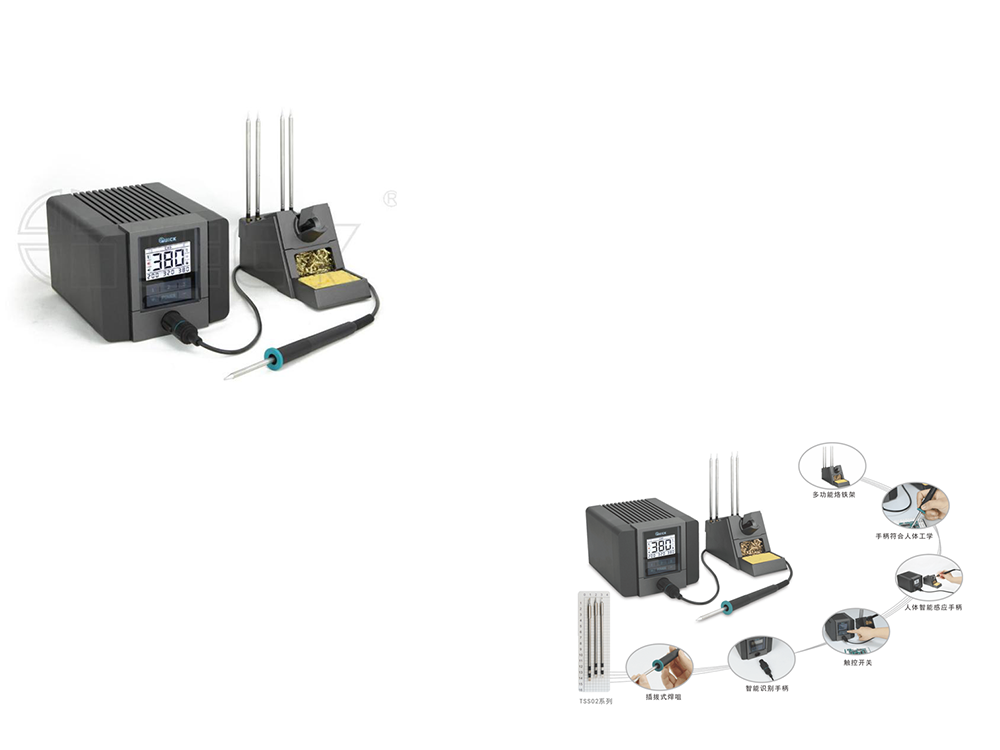

QUICK TS1200D Intelligent lead-free soldering station




Innovative craft

—— Improve welding quality ——




The sensor is placed on the top of the heating core in front of it, and it can return to the temperature very quickly and control the temperature accurately.


As the size of the solder joint changes, the output power is intelligently allocated, and the power can reach 120W.


The overall length of the welding pen is shortened, which is more ergonomic, more comfortable to use, and more suitable for precision welding.


Automatic identification design, when the handle does not match the host, it will alarm.


The touch keys are beautiful in appearance, waterproof and moisture-proof, easy to operate, and have a long life.


Quickly switch 3 different temperature points to meet the different welding process requirements of different products.


The password lock function effectively protects the production process parameters from being arbitrarily modified.


Real-time monitoring of the ESD grounding function to ensure the safety of welding products' electrostatic protection.


More intimate safety protection design, it can respond to sudden power failure and restart, and will not heat up without confirmation, ensuring safety.


Fahrenheit and Celsius two temperature scale modes can be switched freely.


Intelligent induction handle, automatic sleep, touch-type wake up. The automatic shutdown function reduces the cost of consumables and saves energy.


Automatic shutdown function, reduce the cost of consumables and save energy。







Parameter

Product Image




model

TS1100

TS1200

TS1200D

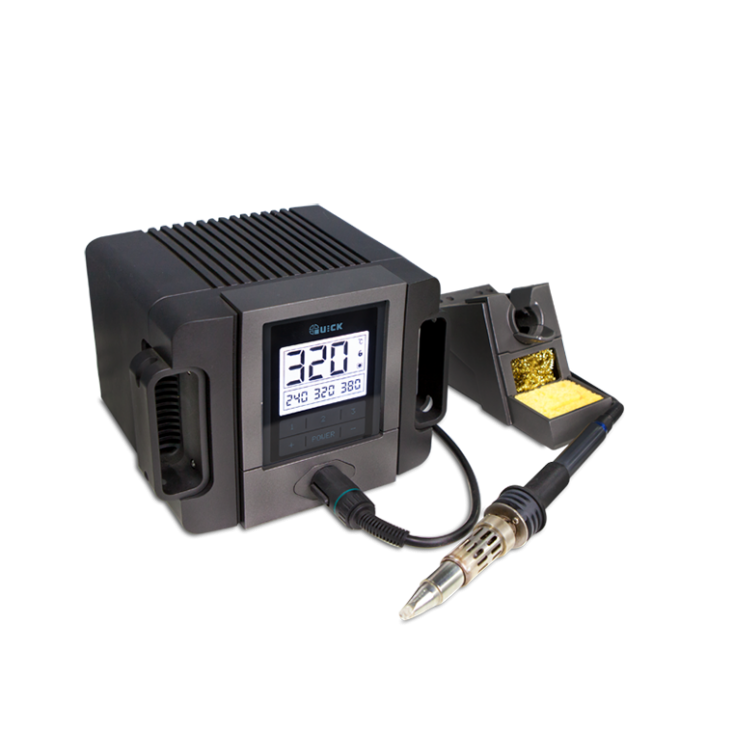

TS1300

power

90W

120W

300W

Heating principle

Resistive

Resistive

Resistive

Operating Voltage

110V/220V AC

110V/220V AC

110V/220V AC

temperature range

200~420°C

200~420°C

200~420°C

Temperature stability

±2°C (still air without load)

±2°C (still air without load)

±2°C (still air without load)

Resistance of welding tip to ground

<2Ω

<2Ω

<2Ω

Potential of welding tip to ground

<2mV

<2mV

<2mV

Handle model

TSS30A

TSS30B

TSS30D

Handle model

TSS10AHeating core assembly

-

HR003-ZZ

Welding tip model

960series

TSS02series

503series

Welding nozzle/heating core

Split

All-in-one

Split

Dimensions

113*150*92mm

137*168*114mm

190*190*134mm

weight

about 2.3kg

about 2.7kg

about 2.7kg

Computer control

no

have

no

have

The main function

图片3.png图片7.png图片4.png图片8.png图片5.png图片9.png图片6.png图片10.png图片11.png图片13.png图片12.png图片14.png图片23.png图片24.png



Remarks: TS1200D has no computer control function and can be heated in two temperature zones, which is suitable for special requirements that require preheating of components and re-welding.

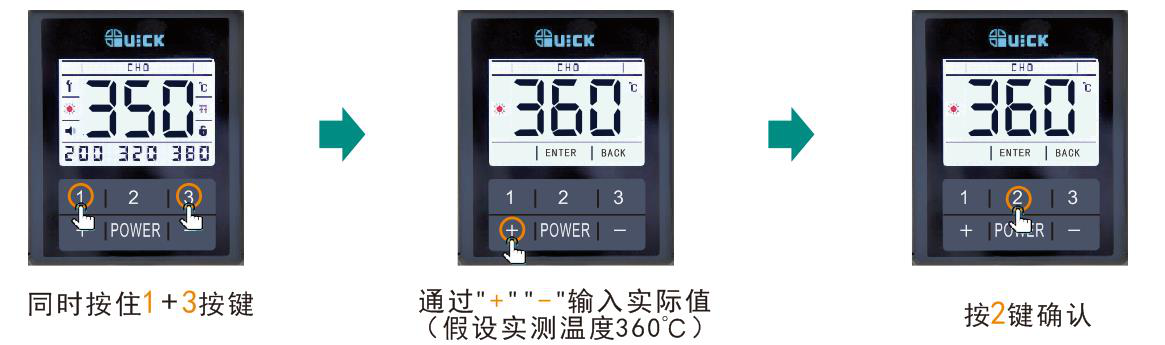

Temperature calibration

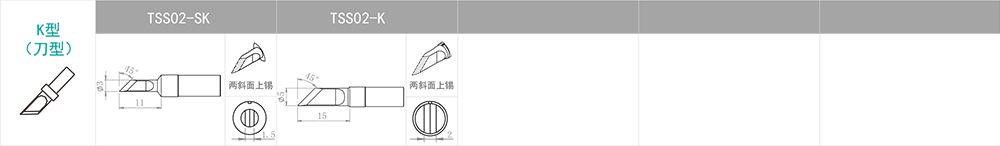

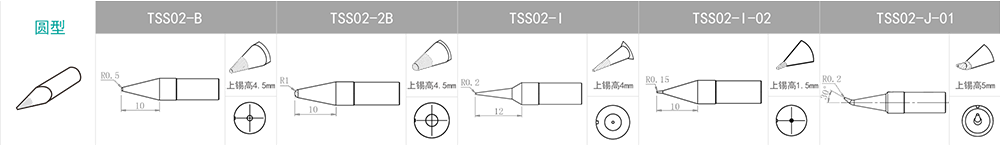

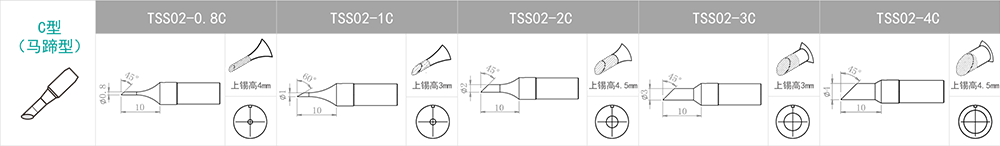

QUICK TS1200D replaceable tip
