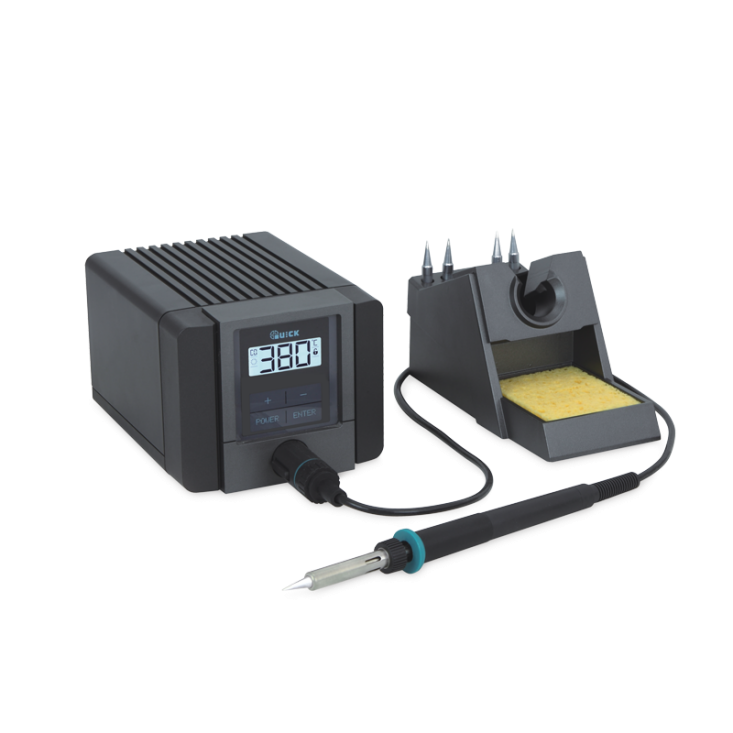

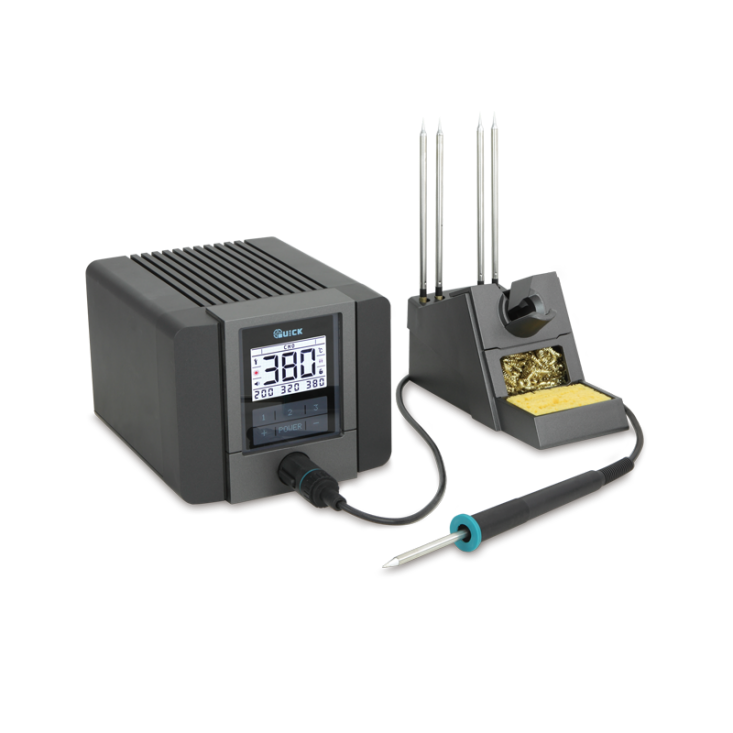

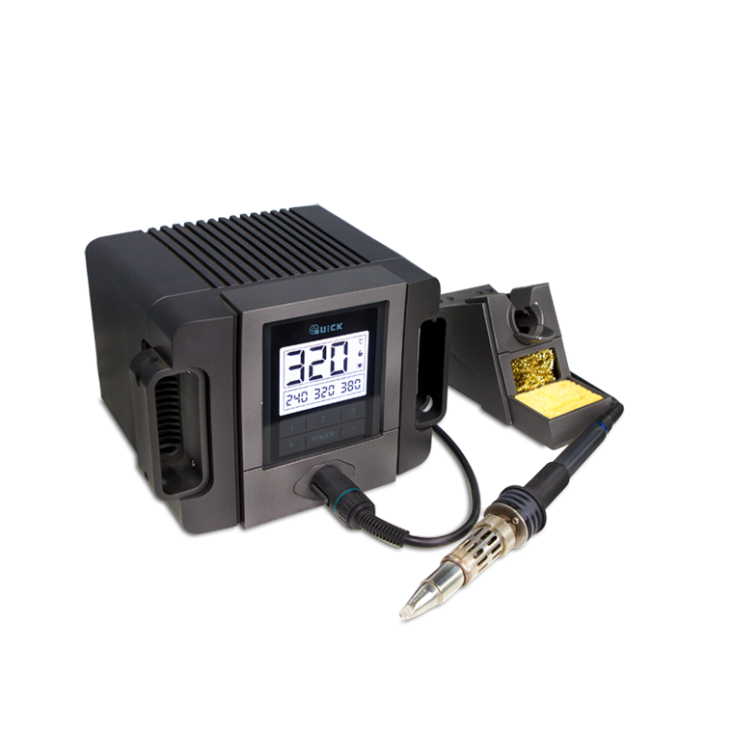

QUICK TS1200Intelligent lead-free soldering station

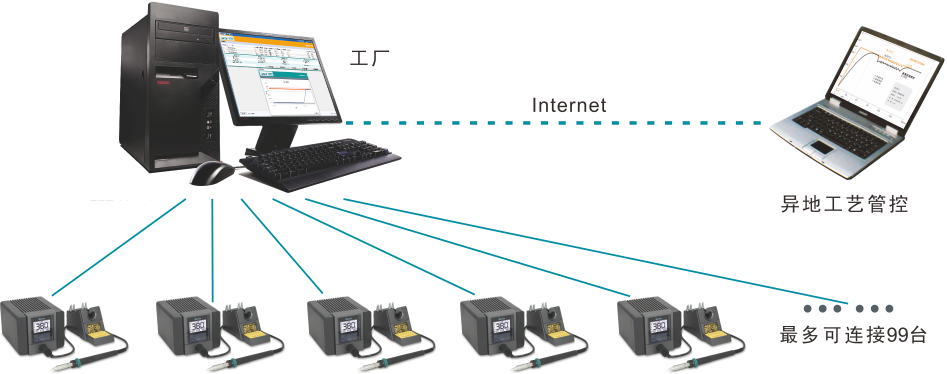

Intelligent network management

—— View the temperature change curve in real time and query historical temperature data ——


Parameter

Parameter
model	TS1100	TS1200	TS1200D	TS1300
power	90W	120W		300W
Heating principle	Resistive	Resistive		Resistive
Operating Voltage	110V/220V AC	110V/220V AC		110V/220V AC
temperature range	200~420°C	200~420°C		200~420°C
Temperature stability	±2°C (still air without load)	±2°C (still air without load)		±2°C (still air without load)
Potential of welding tip to ground	＜2Ω	＜2Ω		＜2Ω
Potential of welding tip to ground	＜2mV	＜2mV		＜2mV
Handle model	TSS30A	TSS30B		TSS30D
Heating core model	TSS10A	-		HR003-ZZ
Welding nozzle/heating core	960series	TSS02series		503series
Welding nozzle/heating core	Split	All-in-one		Split
Dimensions	11315092mm	137168114mm		190190134mm
weight	about 2.3kg	about 2.7kg		about 2.7kg
Computer control	no	have	no	have

Remarks: TS1200D has no computer control function and can be heated in two temperature zones, which is suitable for special requirements that require preheating of components and re-welding.

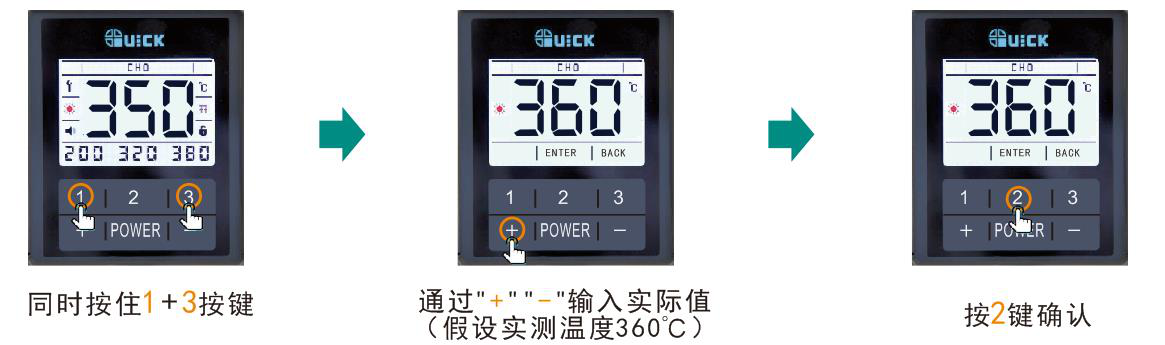

Temperature calibration

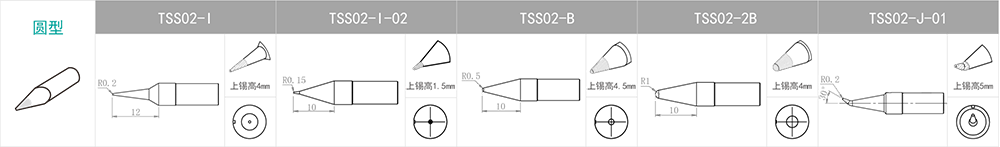

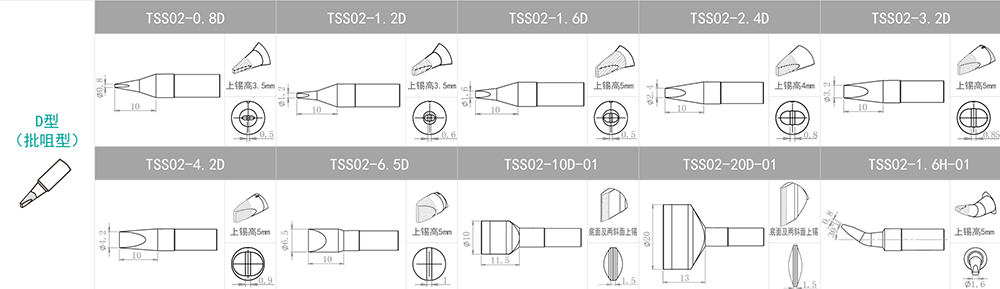

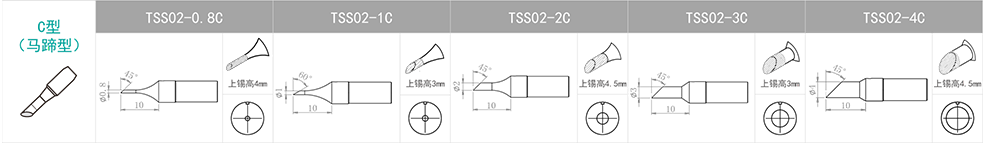

QUICK TS1200 replaceable tip

The following standard welding tip models can be customized according to different application scenarios.
