Feature
1. High-frequency eddy current heating, fast heating and reheating speed, realize lead-free soldering.
2. Microcomputer control, key-press temperature adjustment, digital temperature calibration, and automatic sleep and automatic shutdown functions.
3. 150W high-power design, conventionally can choose 8mm soldering iron tip.
4. The password-type temperature lock function effectively guarantees the production process.
5. The heating core plug-in design makes maintenance more convenient, and there are a variety of soldering iron tips to choose from.
Sensor diagram:

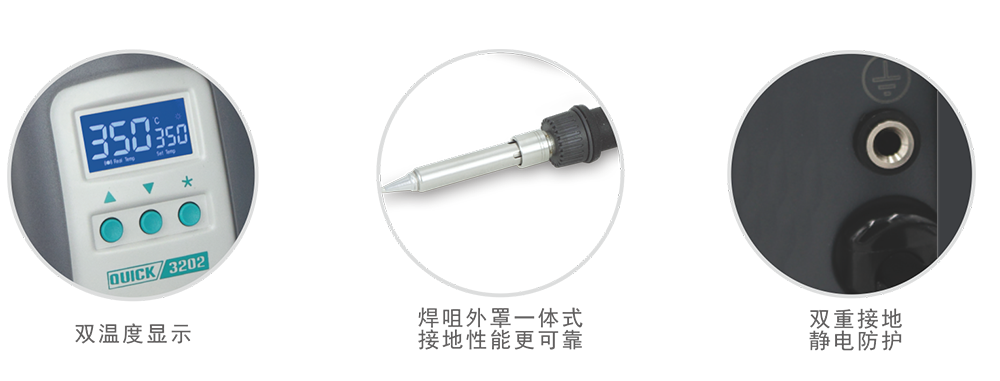

Special color
Specification
model | QUICK 3205 |
Work rate | 150W |
temperature range | 100℃ ～ 550℃(max) (choose according to working mode) |
Stable temperature | ±2℃ (no load in still air) |
Ambient temperature | 40℃ |
Resistance of soldering iron tip to ground | ＜2Ω |
Potential of soldering iron tip to ground | ＜2 mV |
Heating core model | H1205A |
Heating method | High frequency eddy current |
Handle model | 902C / 902A |
Welding tip model | 500series |
Dimensions | 96(W) X 160(D) X 135(H) mm |
weight | 约2.0 kg |

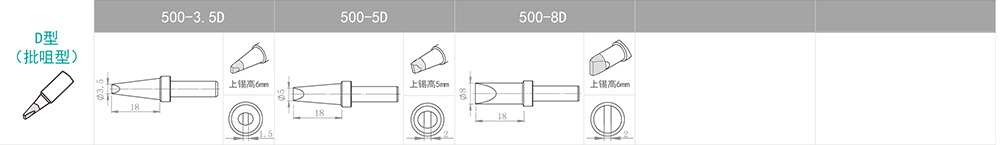

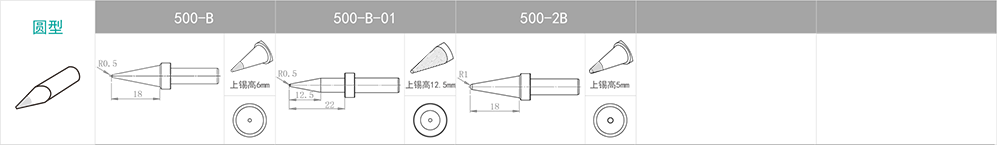

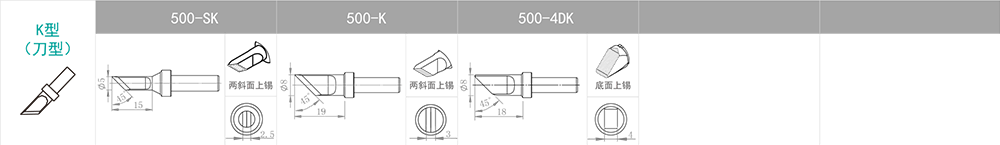

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
