Feature
1. High frequency eddy current heating, sensor front design.
2. Using LCD with backlight, dual temperature display design.
3. Microcomputer control, rapid heating and reheating speed, truly lead-free soldering.
4. Built-in intelligent temperature compensation system, the temperature is accurate and stable.
5. Digital temperature calibration, heating core plug-in design, more convenient maintenance.
6. The plug-in soldering iron tip makes the grounding more reliable.
7. Password lock temperature, three temperature points can be set and stored.
8. Diversified choices of cleaning methods for the soldering iron tip (any choice of cleaning sponge and metal ball).
9. Separate design of heating core, sensor and soldering iron tip, low cost of consumables.
10. Especially suitable for lead-free soldering.

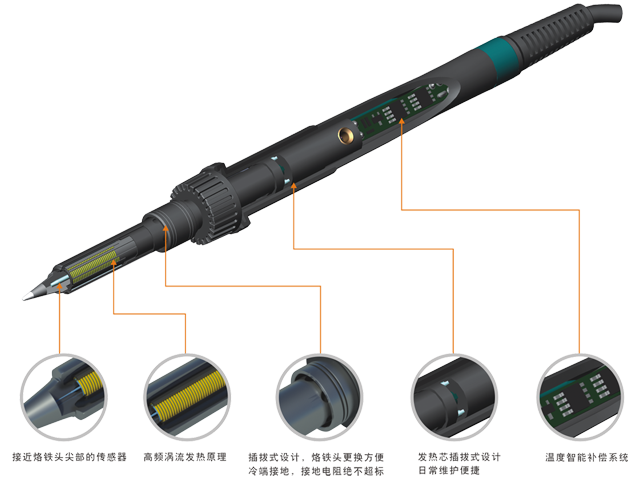

Sensor diagram:

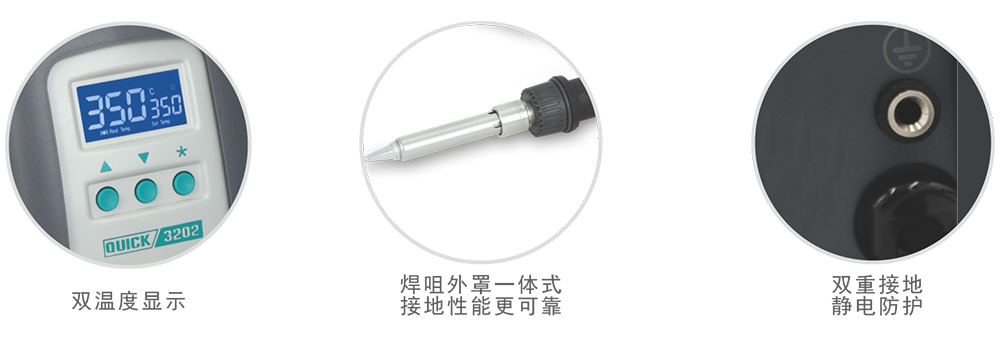

Special color
Specification
model | QUICK 3202 |
Work rate | 90W |
temperature range | 100℃ ～ 500℃(max) (choose according to working mode) |
Stable temperature | ±2℃ (no load in still air) |
Ambient temperature | 40℃ |
Resistance of soldering iron tip to ground | ＜2Ω |
Potential of soldering iron tip to ground | ＜2 mV |
Heating method | High frequency eddy current |
Heating core model | H1901A |
Handle model | 901C / 901D |
Welding tip model | 200G series / 200 series |
Dimensions | 96(W) X 160(D) X 135(H) mm |
weight | About 2.0 kg |

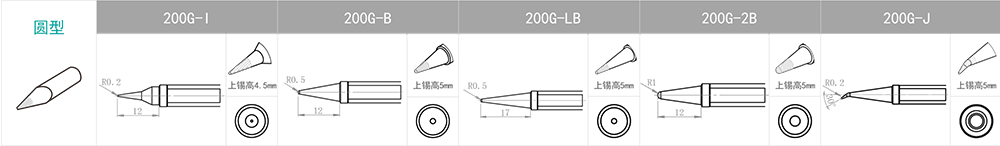

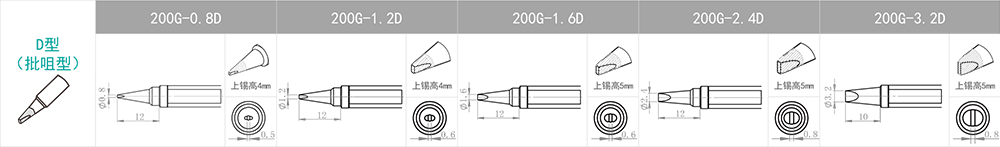

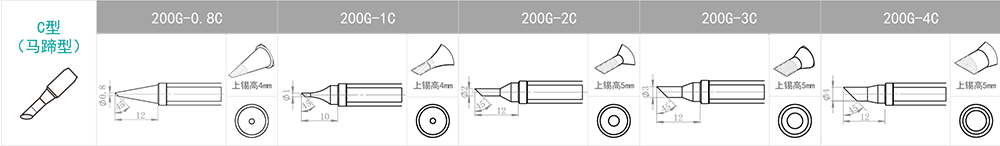

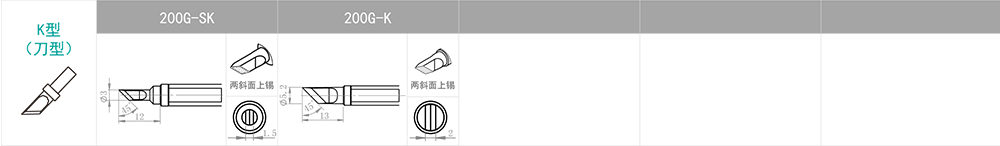

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
