Feature

1. Using high temperature resistant heating core, long life.

2. Rapid heating, fast temperature compensation, accurate and stable temperature control.

3. Can be equipped with a variety of long-life general-purpose soldering iron tips, easy to use.

4. The soldering iron is light and comfortable to use.

5. The appearance is novel and the structure is firm.

6. Preset three temperature points, easy to use.

7. Digital calibration temperature, password lock temperature to ensure process consistency.

Specification

model	QUICK 3104
power	80W
Voltage	AC 220V
temperature range	100℃ ～ 450℃
Temperature stability	±2℃ (no load in still air)
Resistance of welding tip to ground	＜2Ω
Potential of welding tip to ground	＜2 mV
Dimensions	140(L) X 83(W) X 125(H)mm
weight	about 1.7 kg
Handle model	901RAA
Welding tip	960series
Heating core model	H1901R

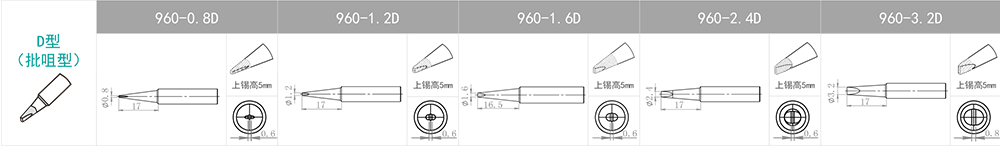

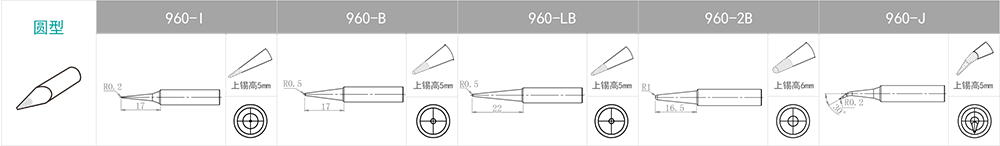

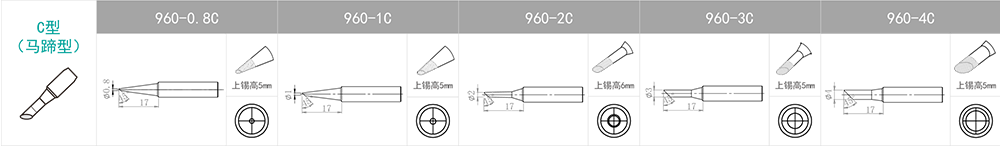

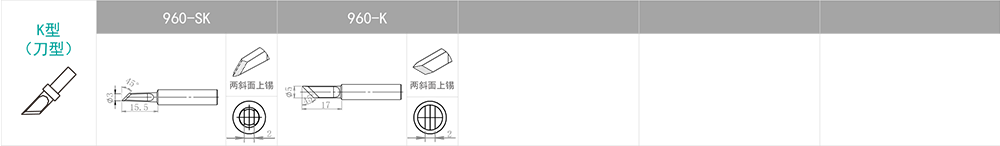

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
