Feature
1. The cost of consumables is low, and the welding tip, sensor and heating element are designed separately.
2. The sensor has a front design, accurate temperature control and rapid temperature recovery.
3. With automatic sleep function, save energy.
4. The temperature lock function ensures the welding process.
5. Digital temperature calibration, simple and convenient operation.
6. Full metal aluminum profile shell, good heat dissipation, sturdy and durable.

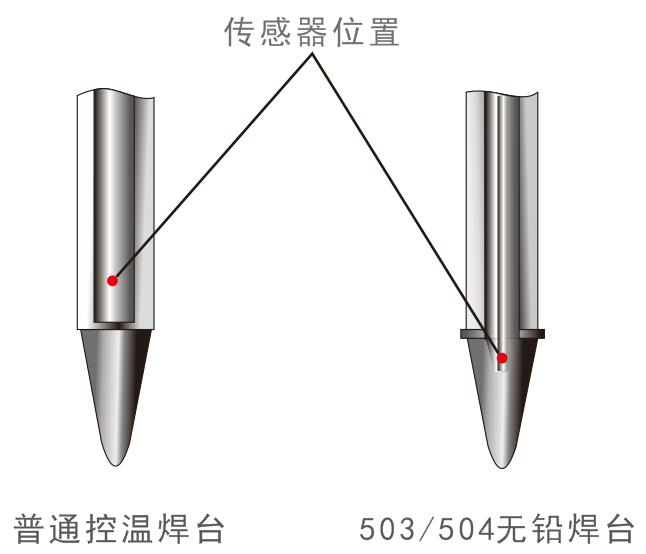

Sensor location comparison
Specification
Model number | QUICK 503 | QUICK 504 |
temperature range | 5 0℃ ～6 0 0℃ | 5 0℃ ～6 0 0℃ |
Work rate | 60W | 90W |
Work rate | High frequency eddy current | High frequency eddy current |
Temperature stability | ±2℃ (no load in still air) | ±2℃ (no load in still air) |
Resistance of soldering iron tip to ground | ＜2Ω | ＜2Ω |
Handle model | ＜2mV | ＜2mV |
Handle model | 50H - 60 | 50H - 90 |
Heating core model | H1203-60W | H1203-90W |
Sensor model | S1203 | S1203 |
Welding tip model | 200series | 200series |
Welding nozzle/heating core | Split | Split |
Dimensions | 150*100*135(mm) | 150*100*135(mm) |
weight | about2.4 Kg | about3.2Kg |

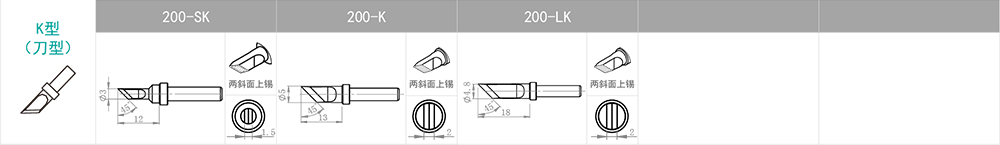

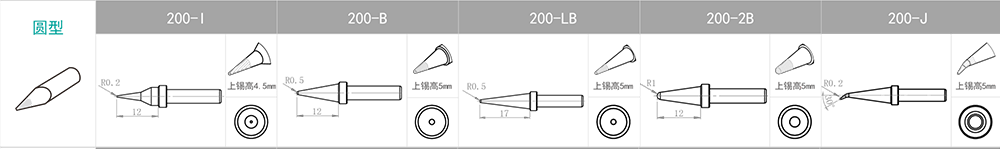

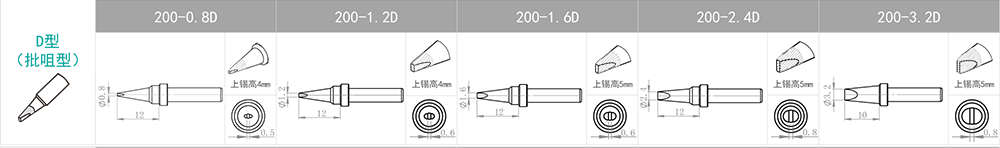

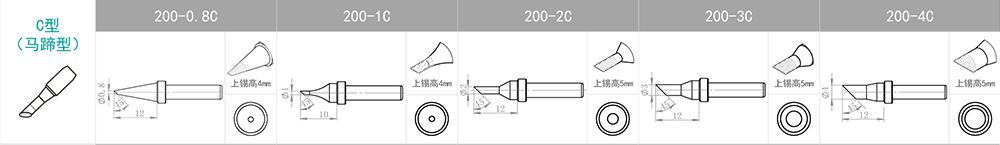

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
