Feature

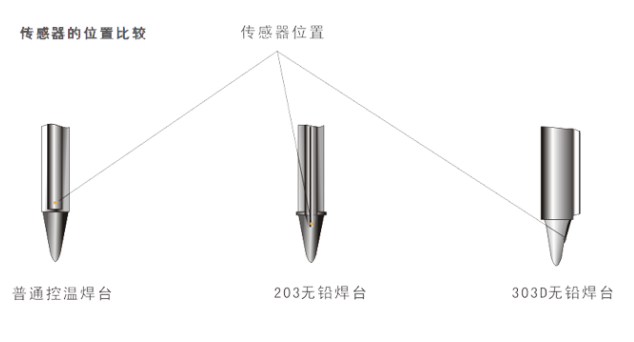

High-frequency eddy current heating, the sensor is placed in front of the soldering iron tip, which can accurately and quickly sense the temperature change of the soldering point.
2. Rapid heating and reheating speed.
3. The new and reliable soldering iron tip grounding system can effectively ensure that the soldering iron tip's earth leakage voltage and grounding resistance meet international standards after long-term work.

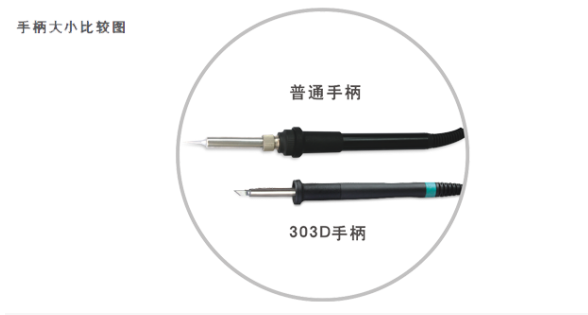

4. The handle is light and handy, and the hand feels comfortable. The heating core and the soldering iron tip are all plug-in design, which is easy to replace.
5. Adopt backlit LCD and dual temperature display design.
6. Digital calibration temperature, convenient operation and password protection function.
7. The upper and lower temperature limits can be set according to the needs to realize the alarm when the temperature exceeds the standard.
8. The sleep time and shutdown time of the soldering station can be set.
9. Especially suitable for lead-free soldering.
Specification
model | QUICK 303D |
power | 120W |
temperature range | 50℃ ～ 500℃ |
Stable temperature | ± 2°C (still air without load) |
Resistance of soldering iron tip to ground | ＜2Ω |
Potential of soldering iron tip to ground | ＜2mV |
Sleep time range | 0 ～ 99min |
Shutdown time range | 0 ～ 99min |
Dimensions | 165L X 130W X 110(H)mm |
weight | about 3.2kg |
Handle model | 903F |
Heating core model | H613 |
Welding tip model | 305 series |

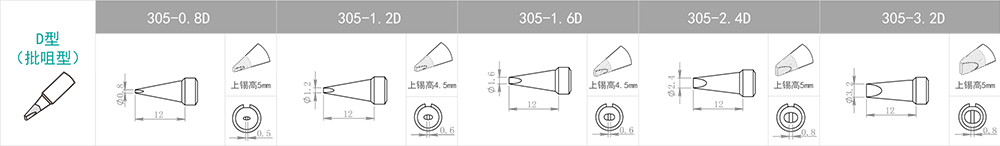

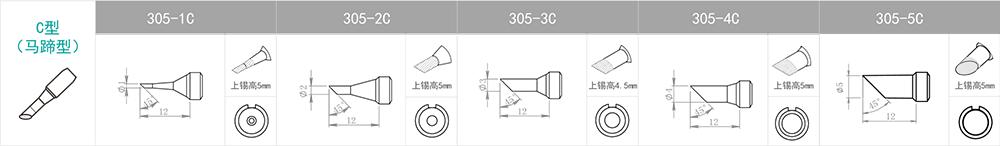

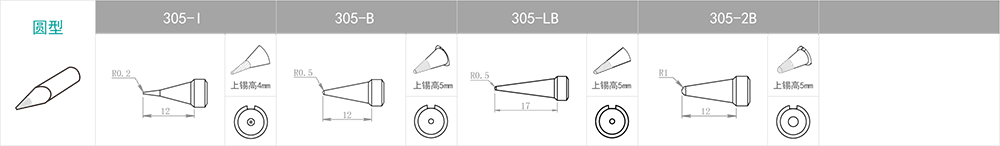

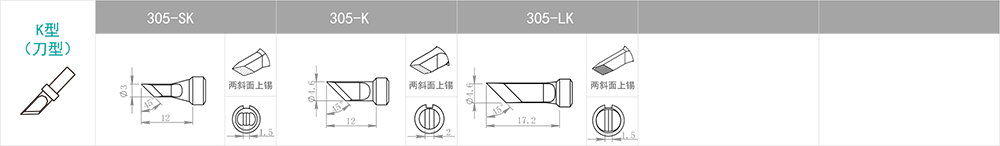

Replaceable welding tips: The following standard welding tips can be customized according to different application scenarios.
