QUICK 236Automatic temperature control soldering station

1. Using high temperature resistant heating core, long life.

2. Rapid heating, fast temperature compensation, accurate and stable temperature control.

3. Can be equipped with a variety of long-life general-purpose soldering iron tips, easy to use.

4. The soldering iron is light and comfortable to use.

5. The appearance is novel and the structure is firm.

6. Digital calibration temperature, password lock temperature to ensure process consistency.

model	QUICK 236
power	90W
Voltage	AC 220V
temperature range	80℃ ～ 480℃
Temperature stability	±2℃ (no load in still air)
Resistance of welding tip to ground	＜2Ω
Potential of welding tip to ground	＜2 mV
Dimensions	60(L) X 105(W) X 125(H)mm
weight	about 2.5 kg
Handle model	907D

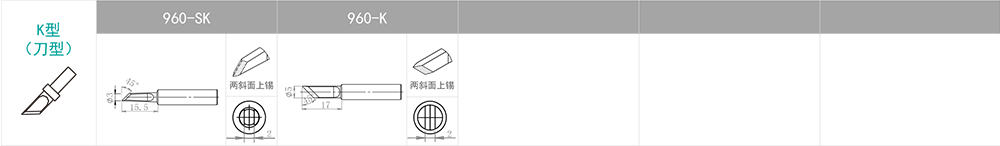

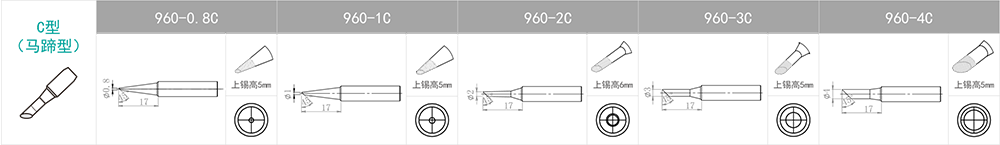

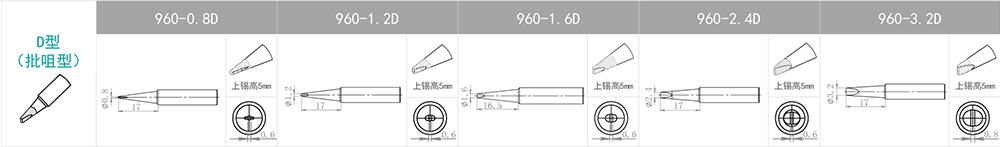

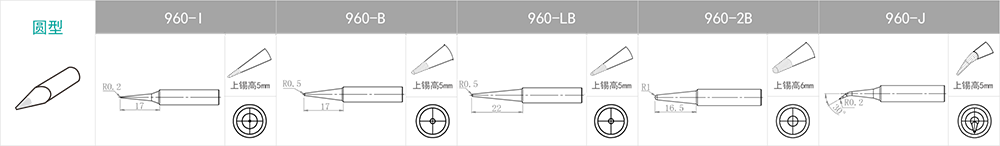

Welding tip	960 series
Heating core model	A1321
